Connected game setup

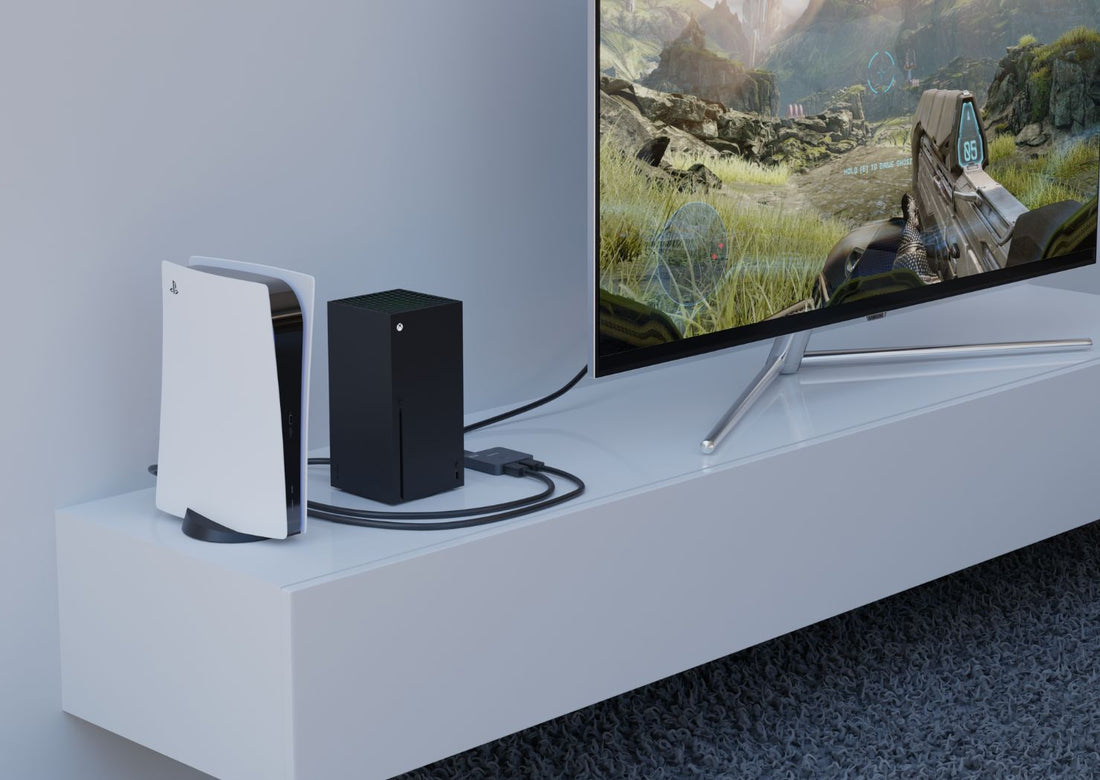

Connect an Xbox Series X and PlayStation 5 simultaneously to the HDMI port on a gaming monitor, television or projector.

Want to make the most of your Xbox Series X or PlayStation 5 by playing at 4K and 120fps? Then it is important to use the right accessories and displays. For example, you need a television, gaming monitor or projector with an HDMI 2.1 port and 4K resolution. Also remember to use HDMI cables that support HDMI 2.1 or higher.

HDMI switch 4K 120Hz

Are you the proud owner of both game consoles? Then use the Connect 720 to connect these game consoles to a gaming monitor, television or projector simultaneously using a single HDMI cable. A 4K gaming monitor or 4K television often has only one HDMI connection that supports 4K 120Hz. With the Marmitek Connect 720, you always have the option to connect 2 HDMI devices (4K and/or 8K) to a single HDMI port.

HDMI 2.1

As mentioned earlier, all devices that you connect to this latest generation of game consoles must support HDMI 2.1 or higher. If this is not the case, you will not benefit from the unique features and optimal image quality that new consoles offer. The Connect 720 supports several features of the HDMI 2.1 standard. Therefore, using this HDMI switch will not affect the unique features of your Xbox Series X or PlayStation 5.

Some of the important gaming features supported by the Connect 720 are:

VRR (Variable Refresh Rate)

VRR is an acronym for Variable Refresh Rate. This means that your display adapts the refresh rate to the frame rate of a console or PC. When you watch movies or TV shows, they are usually at 24fps, 25fps or 30fps, and you don't need VRR. The frame rates in a game are much less constant and fluctuate greatly because of all the action going on. These sudden changes in frame rate cause screen tearing on monitors operating at static refresh rates. VRR ensures that the refresh rate of the screen is matched to the frame rate transmitted by the console.

The Connect 720 scores particularly well because, in addition to 4K at 120Hz, it can also process VRR. This allows you to connect, for example, an Xbox Series X and a PlayStation 5 to a suitable TV without the image being downgraded to 60 (or even 30) frames. This is often the case with HDMI switches from 2021 and earlier, which do not support VRR.

ALLM (Auto Low Latency Mode)

Automatic Low Latency Mode is another feature for game consoles and PCs. Low Latency mode refers to the 'Gaming mode' found on the TV. ALLM allows the source to automatically indicate that Gaming Mode should be used for the image being played. The Gaming Mode reduces the lag between your input via a game console controller and the action you see on your screen.

Automatic switching between 2 connected sources

This HDMI switch automatically switches between the connected HDMI sources. The switch detects when, for example, the PlayStation 5 or Xbox Series X is switched on and quickly and safely switches to the correct source automatically. Manually selecting an active source via the button on top is always possible when both devices are switched on. You do not need a remote control.

Connect 720

Summary

  • Connect 2 HDMI devices (4K and/or 8K) using 1 cable to the HDMI input of a gaming monitor, television or projector.
  • Suitable for Ultra HD 8K60 (7680 x 4320 / 60Hz) & 4K120 (3840 x 2160 / 120Hz) resolution.
  • Supports gaming features such as VRR, ALLM, QMS and QFT.
  • Available audio formats: DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/AC3 and PCM Stereo.
  • HDR, Deep Colour and 4:4:4 chroma colours.

Connect your PlayStation 5 or Xbox Series X simultaneously to the 4K 120Hz HDMI port on your gaming monitor today. 4K gaming has never been easier.

Why choose Marmitek?

All our products have been thoroughly tested and meet the high quality requirements that we and our customers set for our products. For 25 years, we have offered the best solutions for image and sound transmission at an affordable price. We make products accessible to everyone; all our products are plug & play.

Moreover, we are always ready to help you find the right solution for your situation.

Marmitek. Stay connected.
