Invisible Control 6

Invisible Control 6
IR extender - 6 appl.
Skip to product information
1 of 9

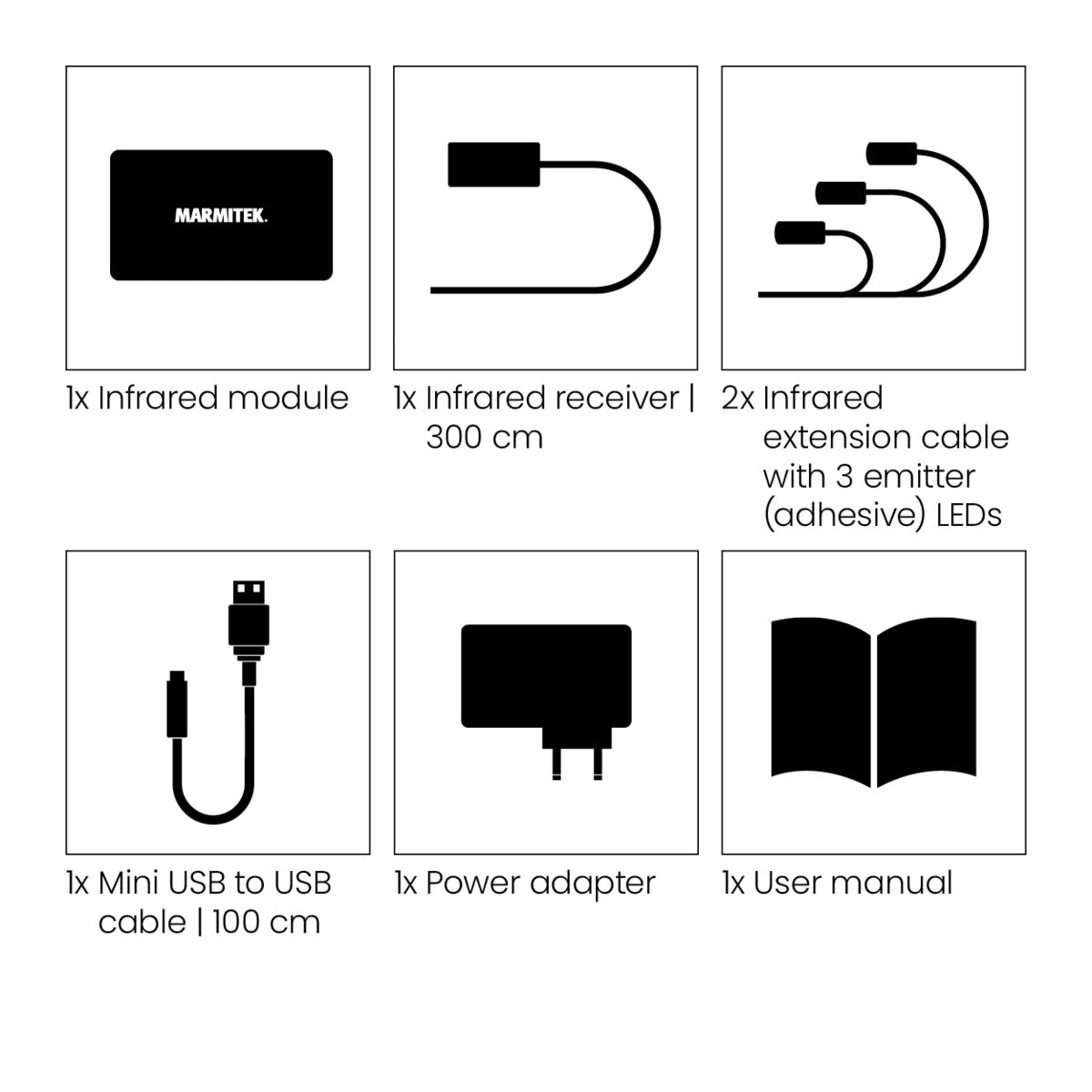

Always included

  • IR module

  • IR receiver | 300 cm

  • 2x IR extension cable with 3 emitter (adhesive) LEDs

  • Mini USB to USB cable | 100 cm

  • Power adapter

  • User manual

Invisible Control 6
Invisible Control 6
IR extender - 6 appl.

In stock

€ 49,99
€ 0,00 € 49,99
(incl. VAT)
Title

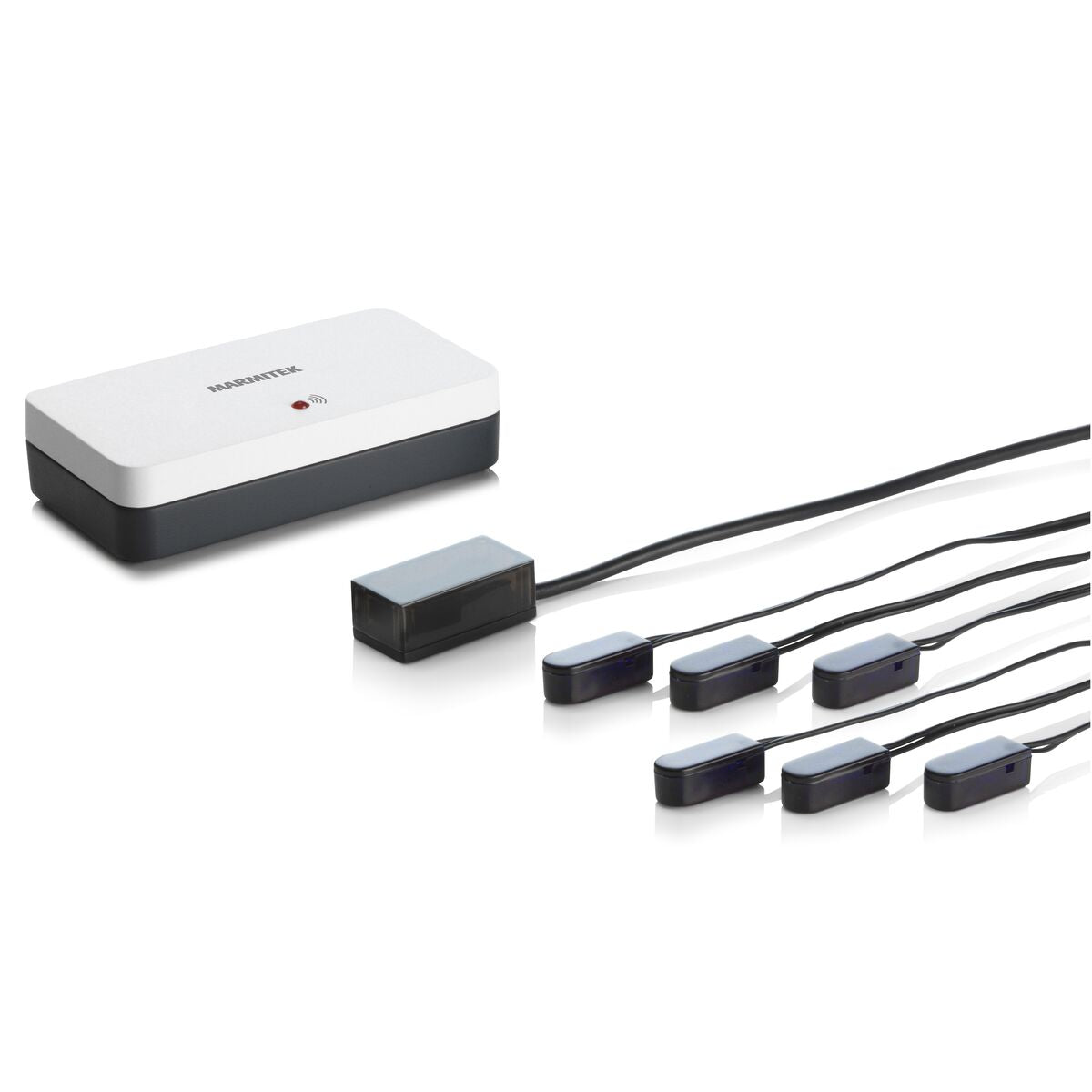

This IR extender allows you to operate up to 6 devices inside a closed cabinet, using your own remote control. The Invisible Control 6 can be positioned virtually invisibly and works with all equipment that is controlled by infrared signals. This infrared extender consists of an IR receiver, an IR module and 6 emitter LEDs. You stick an emitter LED on each device you want to operate.

Control 6 AV devices

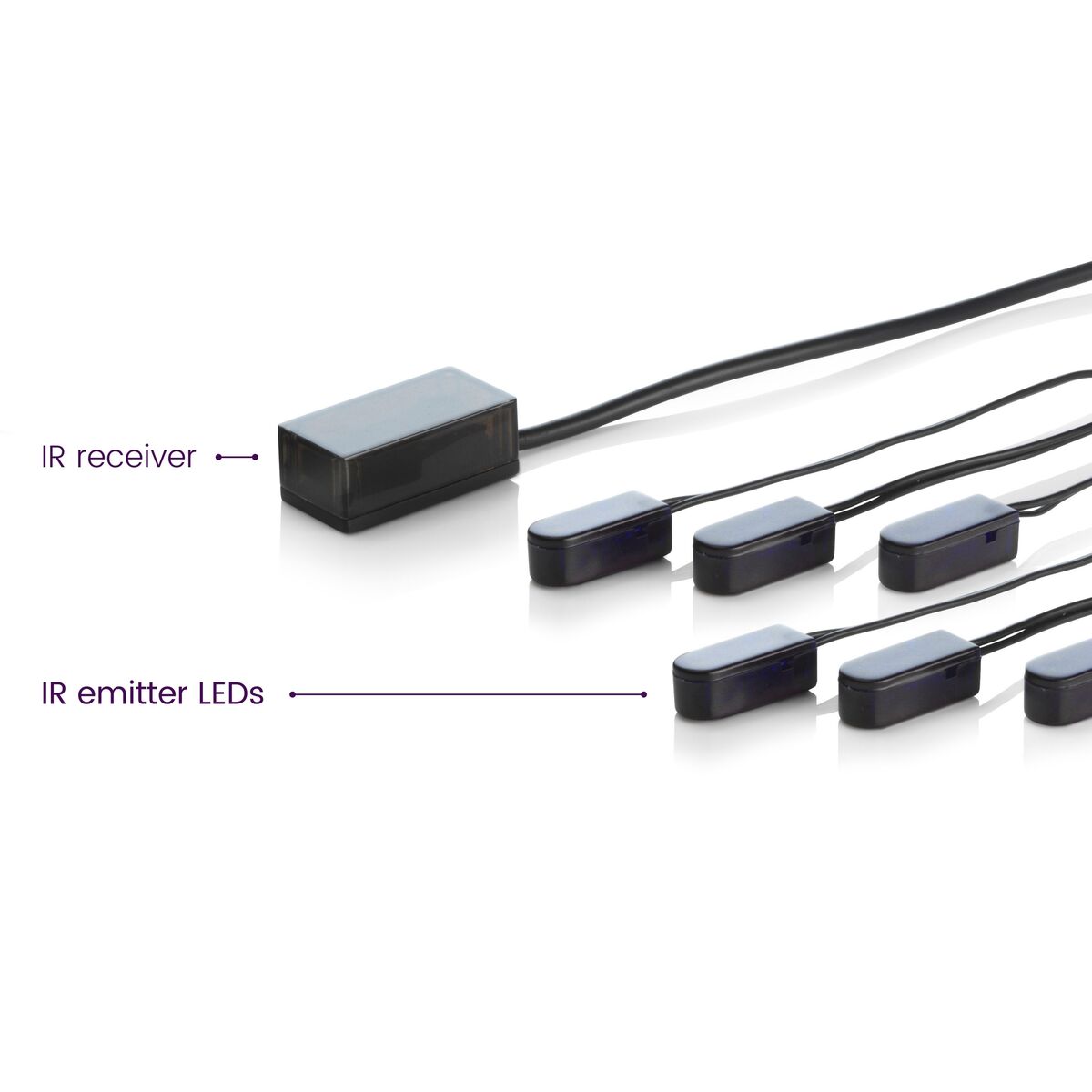

IR emitter LEDs

Extra small IR receiver

View full details
Invisible Control 6 - IR extender - Product Image | Marmitek
Invisible Control 6
€ 49,99
EU

Product description

Operate up to 6 devices inside a closed cabinet, using your own remote control.

  • Intended to operate up to 6 devices inside 1 or 2 compartments of a closed (TV) cabinet, using your own remote control.
  • Works with virtually all brands and models and is suitable for new infrared code formats (such as RC-MM), which are used in many new HD devices and digital TV decoders.
  • Best filtering technology in the market, developed and tested for all European TV decoder providers
  • Due to advanced filtering techniques, impervious to use near flat screen TVs (LCD, LED) and with indirect sunlight.
  • With the exception of the tiny infrared receiver, the complete set can be placed completely out of sight.
  • Works on USB mains power (adapter included) or can be connected to a free USB port on one of your audio visual devices.

The Marmitek Invisible Control 6 makes it possible to operate equipment inside a closed cabinet. The set consists of a receiver, a module and 6 emitter LEDs. You stick an emitter LED on each device you want to operate. This enables you to operate up to 6 devices that are inside a closed cabinet, using your own remote control.

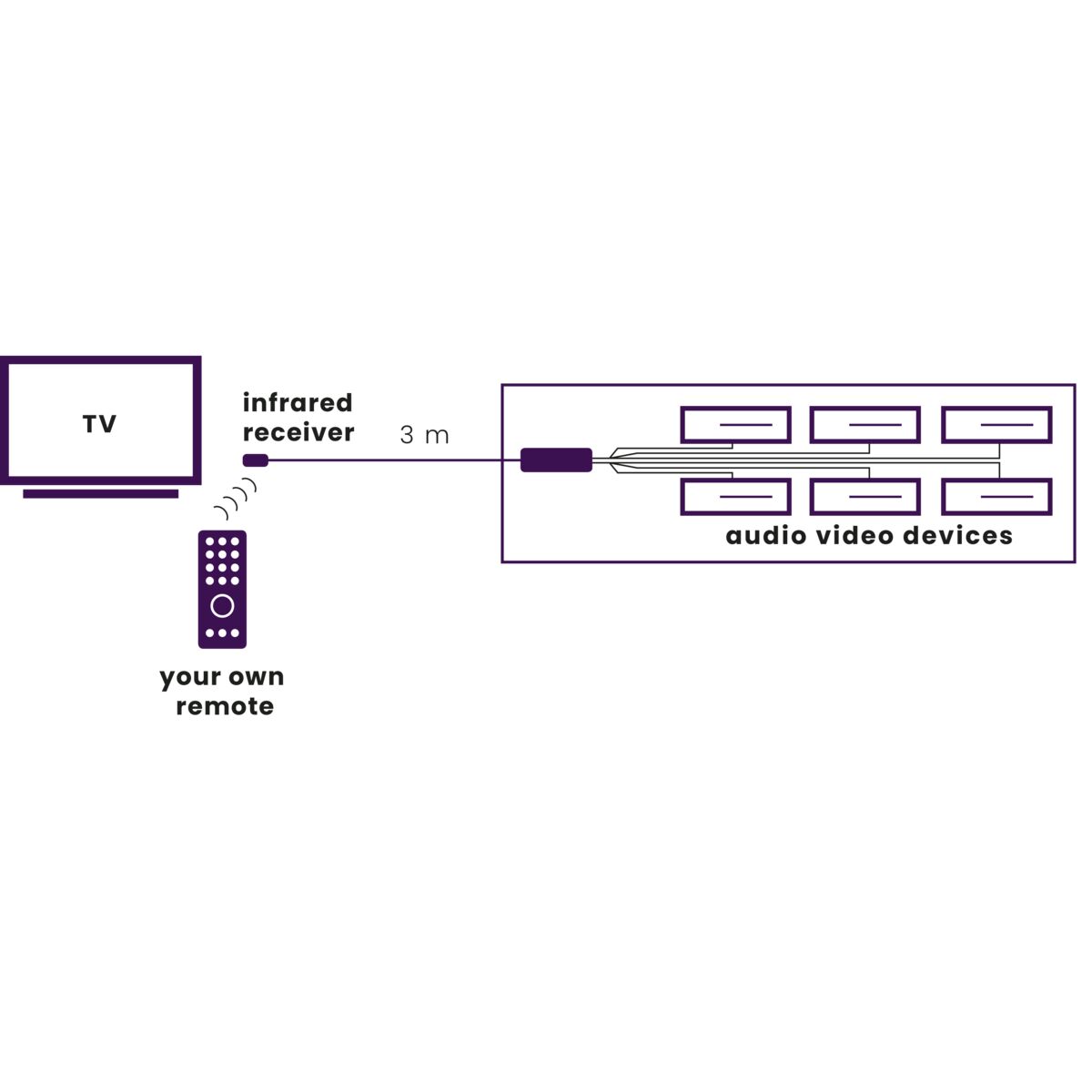

You place the receiver within your remote control's line of sight, having it connected to the module you placed inside the cabinet. You then connect the transmitter to the module. Your remote control's signal is transmitted via the receiver to the module, which in turn transmits the signal to the transmitter(s). The transmitter then 'operates' your audio visual equipment. This ensures that you do not have to open any cabinet doors in order to operate your equipment.

The Invisible Control 6 is similar to the Invisible Control 6 XTRA. This product is equipped with infrared blaster LEDs, which increases the ease of use, and can operate more devices.



Technical specifications

Ir emitter
Infrared emitter (self-adhesive) LEDs 100, 200 and 300 cm with 2.5 mm jack plug (mono)

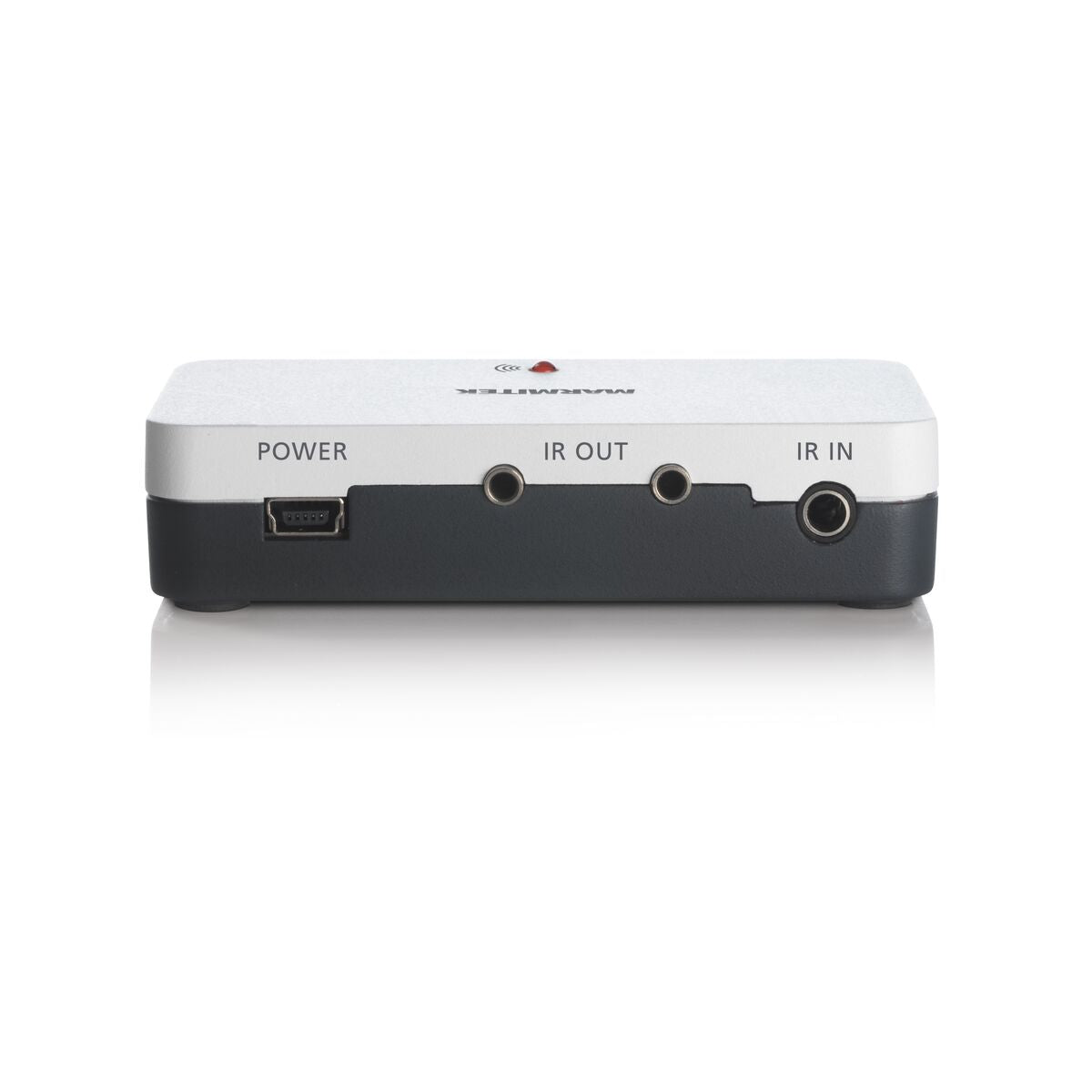

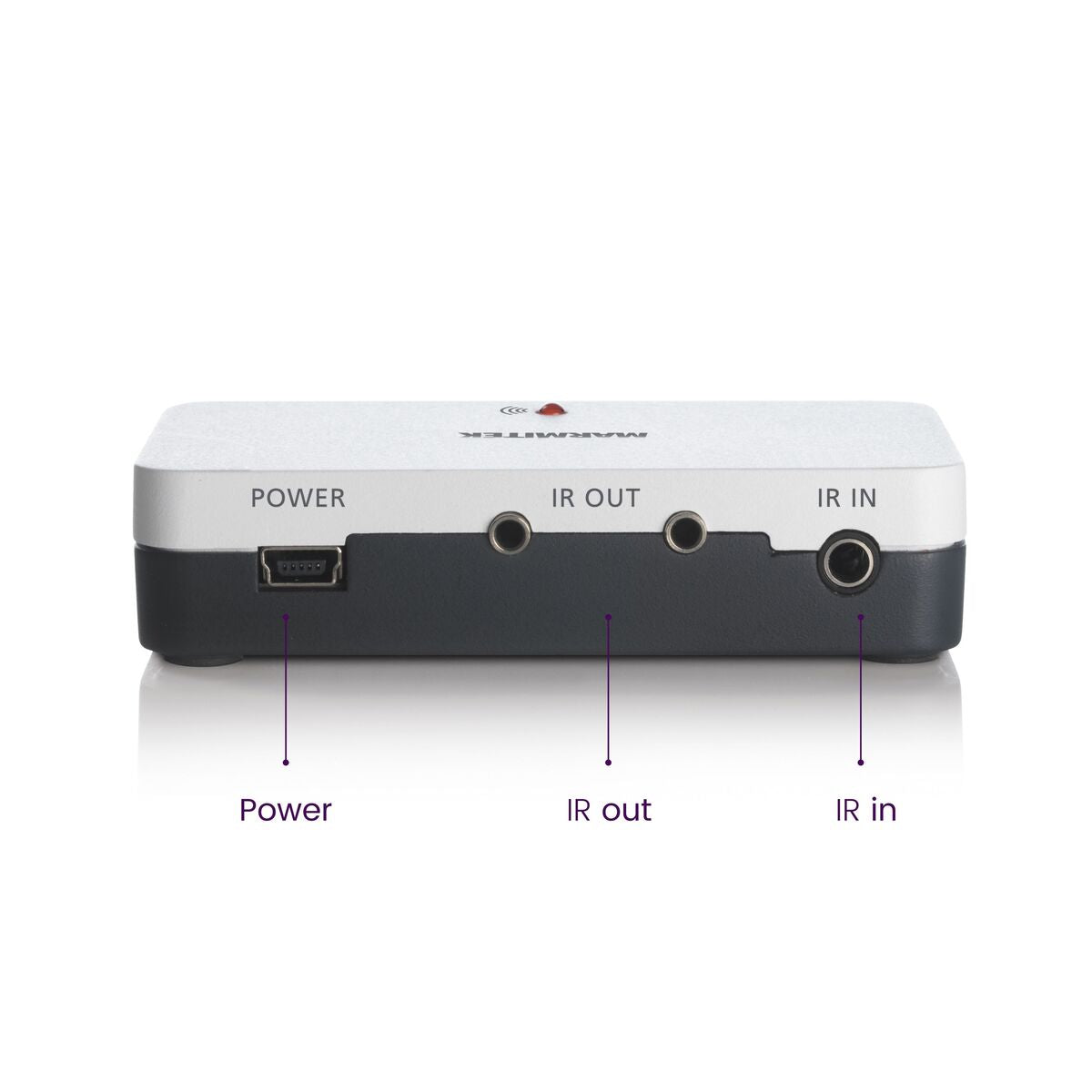

Ir module

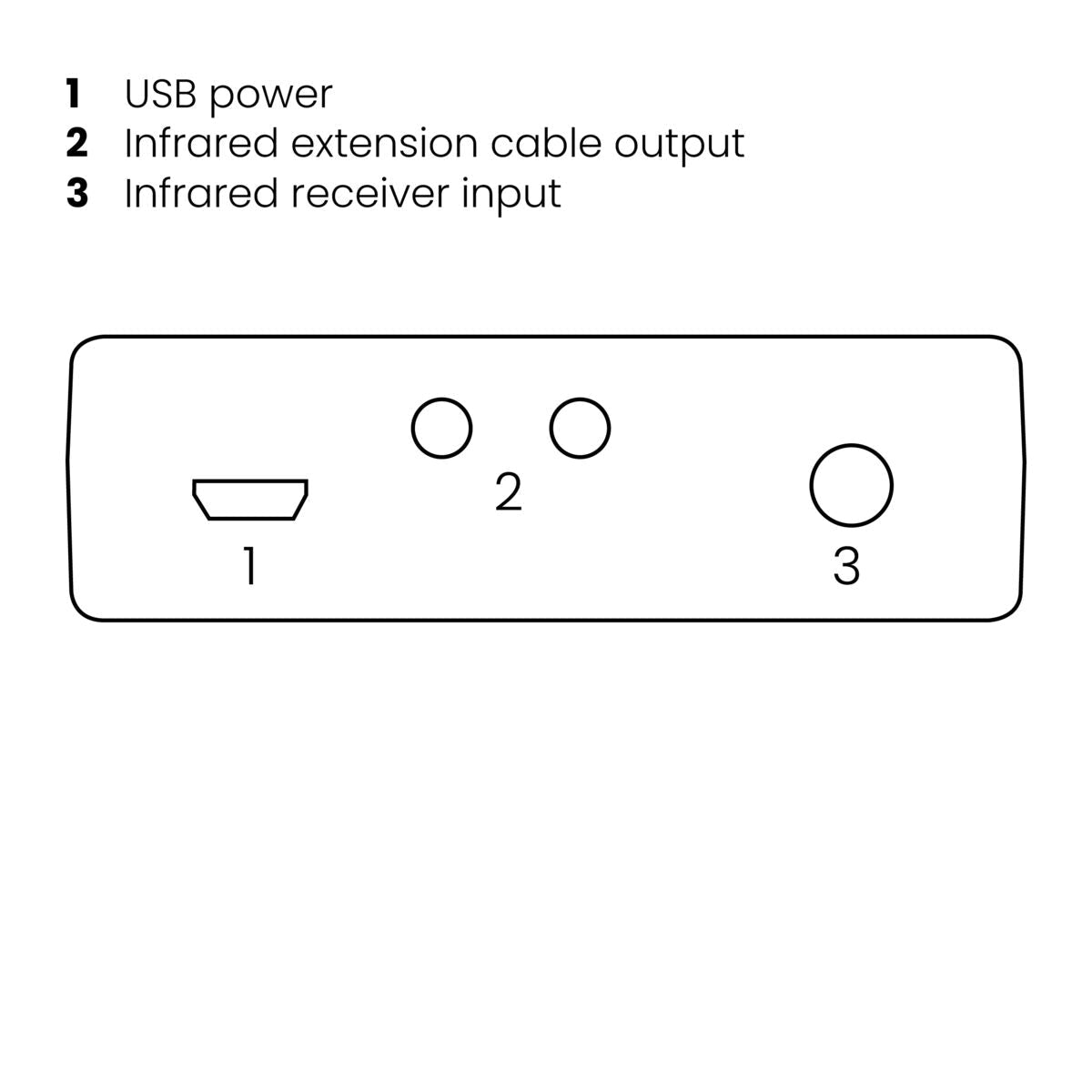

Power supply 100-240 VAC 50/60 Hz, 5 VDC mini USB adapter (included) or via mini USB cable (not included)
Infrared input 1x 3.5 mm jack (mono)
Infrared output 2x 2.5 mm jack connection (mono) for emitter leds

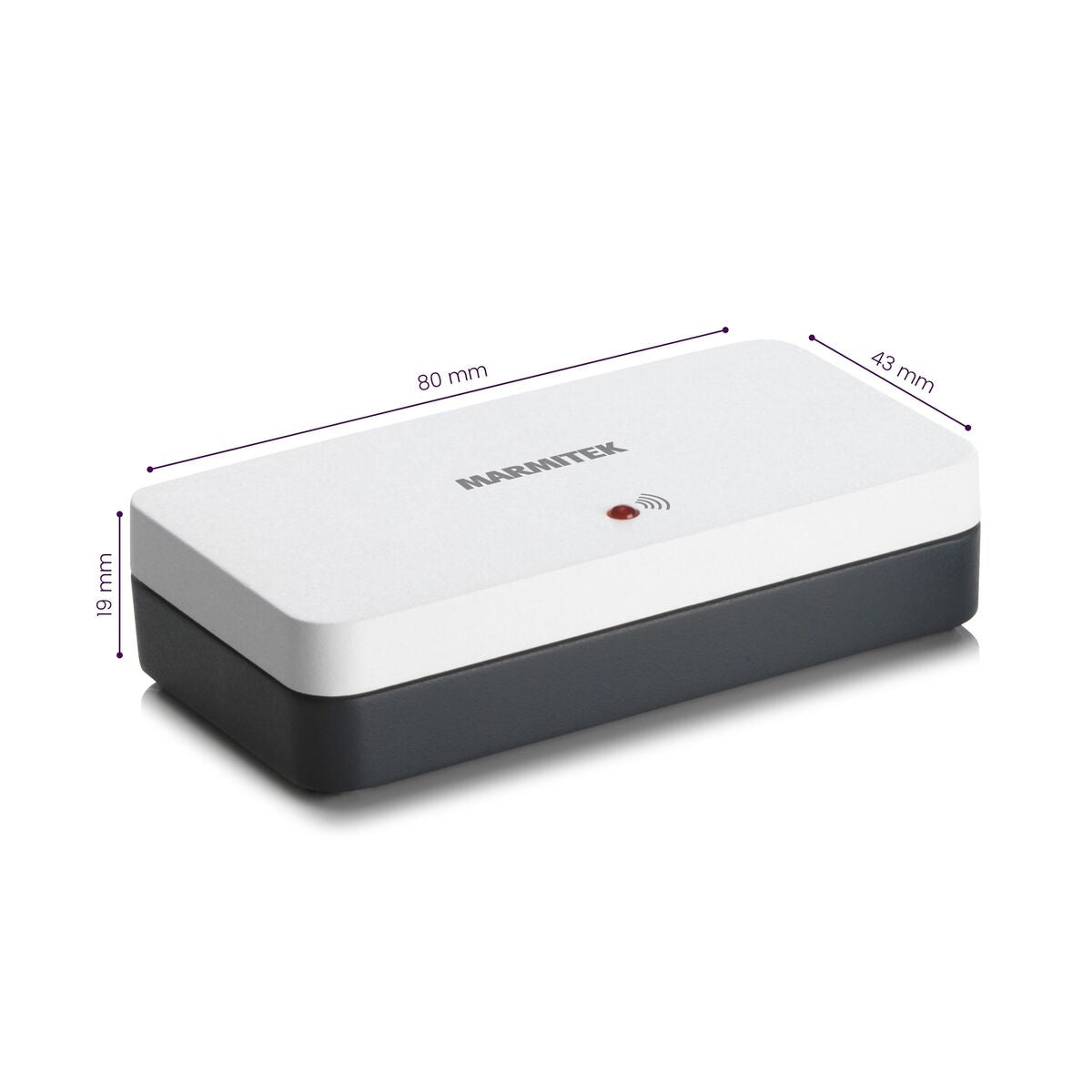

Size 19 x 80 x 43 mm
Ir receiver
Frequency range 30 - 60 kHz
Infrared reception range ± 10 meters
Infrared reception angle 60° (+30°/-30° from center)
Cable length 300 cm
Size ( h x w x d) 11 x 15 x 30mm

Reviews

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous
Doet perfect wat het moet

Doet perfect wat het moet

D
Dml
Doet wat het moet doen

Doet wat het moet doen

A
Andre Vandievel
Invisible control 6 xtra

infrarood verlenger 8 app

Points of sale

Find Our Store
    Opties Reset
    • Lijst
    • Kaart

      Frequently asked questions

      Can I place the IR LED in the centre of the infrared eye?

      The IR LED is made of a material which lets the infrared light through. You can place the LED in the centre of the eye without any problems.

      Can I extend the cable with the IR (infrared) LEDs?

      No, that is not a good idea. The signal becomes too weak. The warranty also expires.

      Can I remove one of the IR (infrared) LEDs if I don’t use it?

      Do not remove any of the IR LEDs. You can, however, attach the unused IR LED to the bottom or back of the device.
