Split 614 Pro
Split 614 Pro
HDMI splitter 4K 60Hz - 1 in / 4 out

Soon available

€ 99,99
€ 0,00 € 99,99
(incl. VAT)
Title
With this HDMI splitter 4K, you can split the HDMI signal, for example from a decoder, media player, presentation system, or conferencing solution, to 4 screens simultaneously. Ideal when you need to display the same presentation, product video, or advertising message in multiple rooms or on several displays at the same time. This 4K HDMI splitter is fully compatible with the latest professional AV equipment featuring HDMI 2.0 and HDCP 2.2 protection. Suitable for use in 24/7 business environments, AV installations, and professional presentation applications.

Split an HDMI signal to 4 TVs

Supports Ultra HD 4K60, HDR, Deep Color, 4:4:4 Chroma Colors (18Gbps)

EDID Switch

Supports HDCP 2.2

Soon available – get notified

View full details

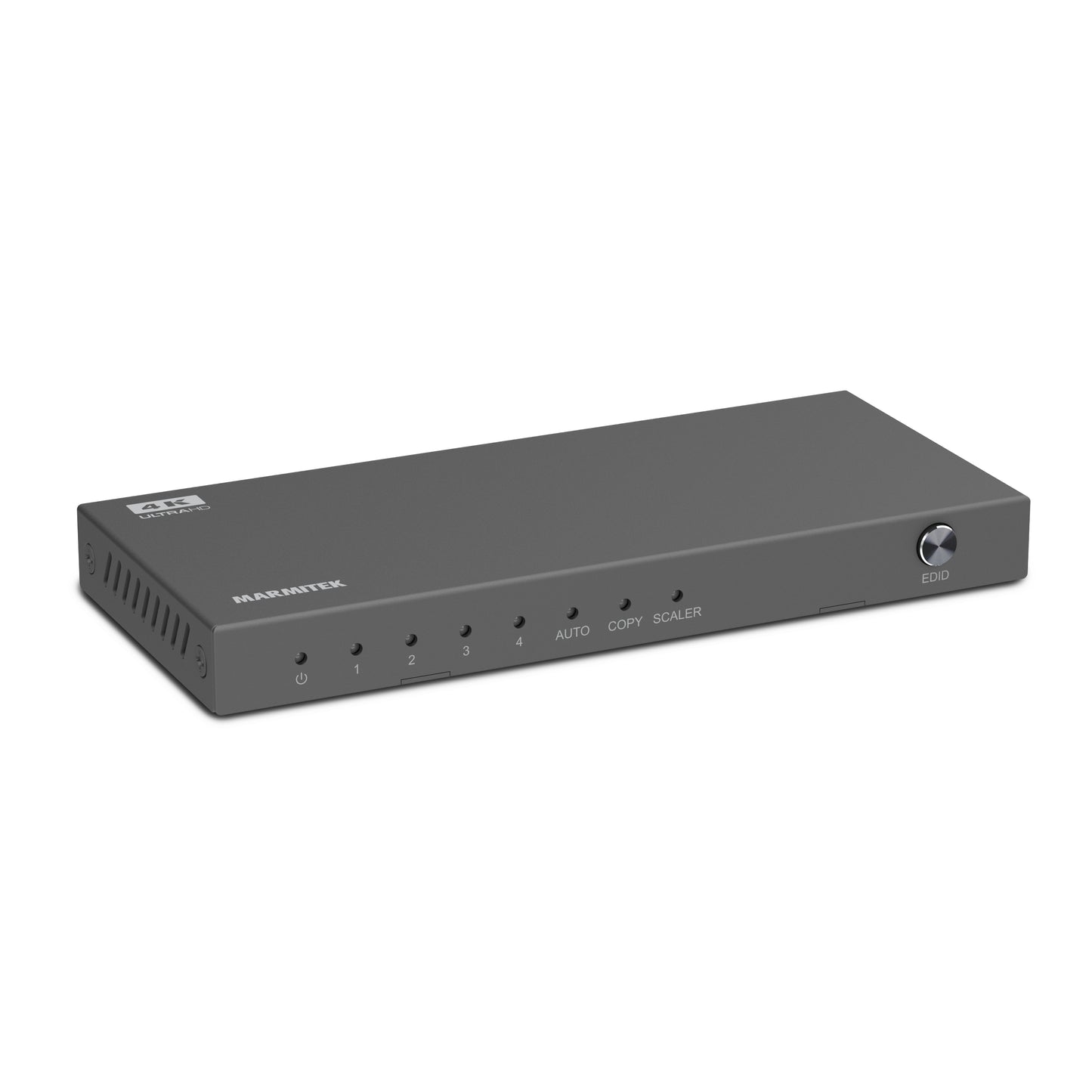

Split 614 Pro - HDMI splitter 1 in / 4 out - Product Image | Marmitek
Split 614 Pro
Soon available
€ 99,99

Product description

Split a 4K HDMI signal into 4 HDMI outputs

  • Suitable for Ultra HD 4K 60 Hz signals, High Dynamic Range (HDR), Deep Color, and 4:4:4 Chroma colors.
  • Use the downscale function to display videos in the highest possible resolution on all screens.
  • With built-in repeater and equalizer for correcting any potential signal loss.
  • Supports Dolby Atmos and DTS:X as well as all other common audio formats.
  • Interference-free thanks to a solid metal, interference-free quality housing.

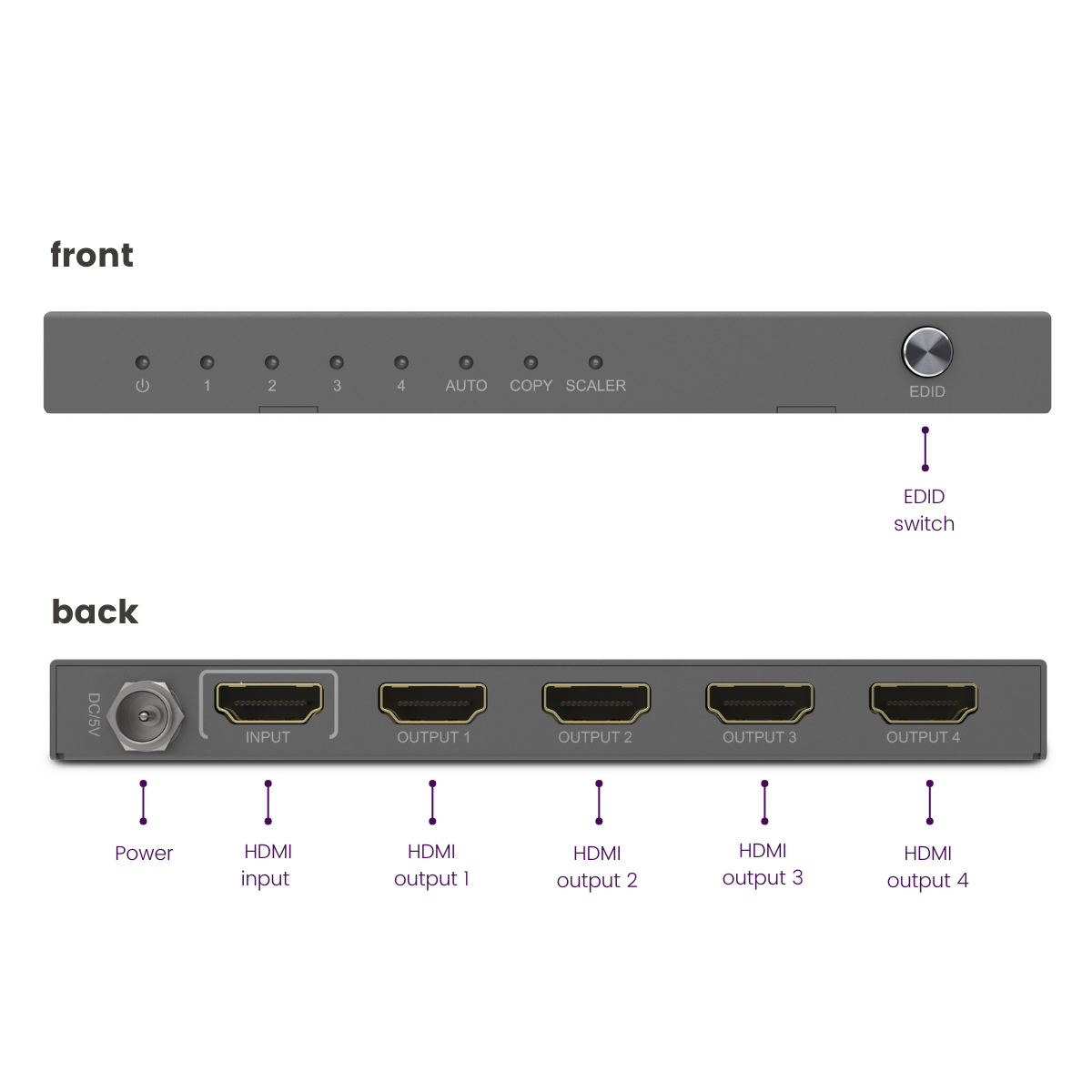

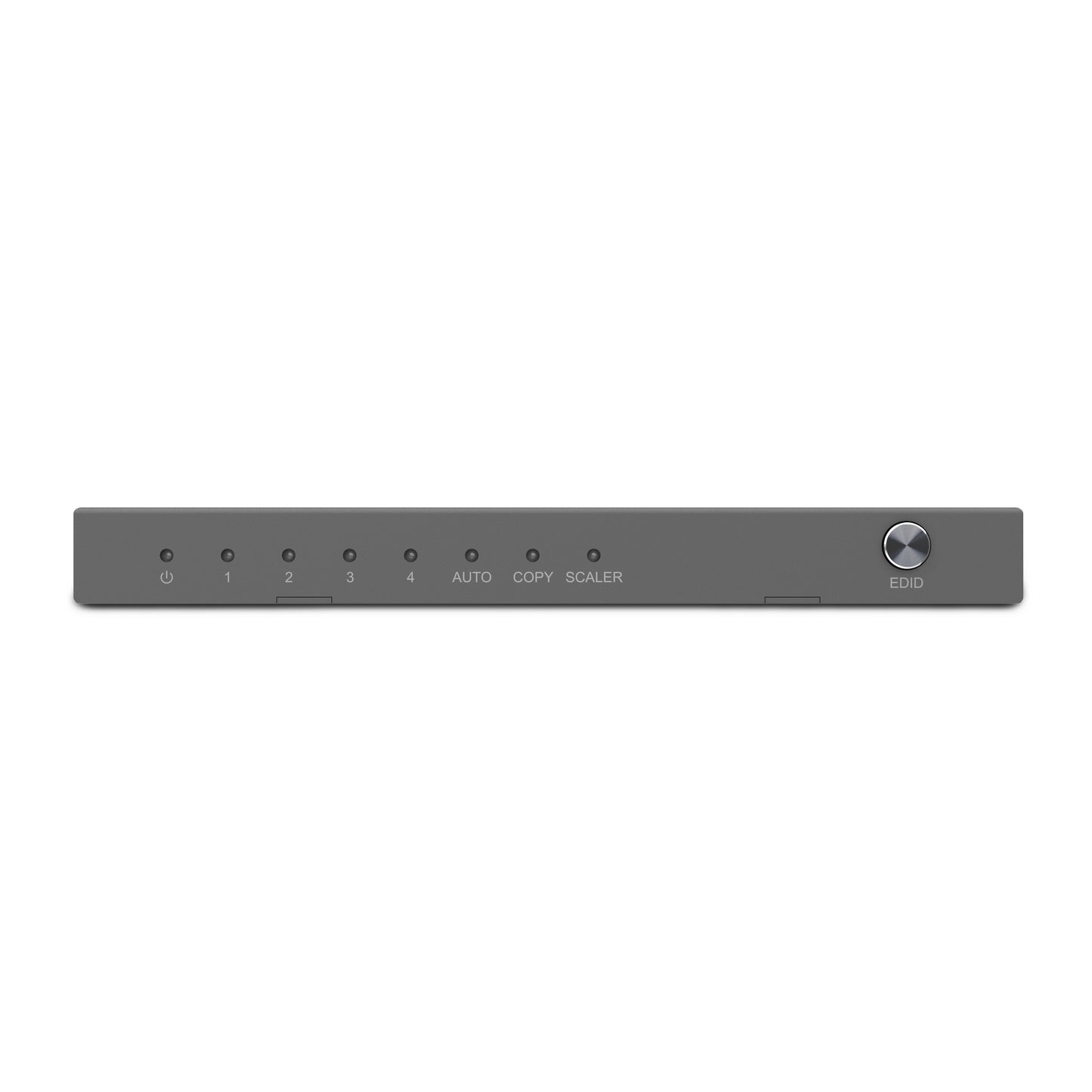

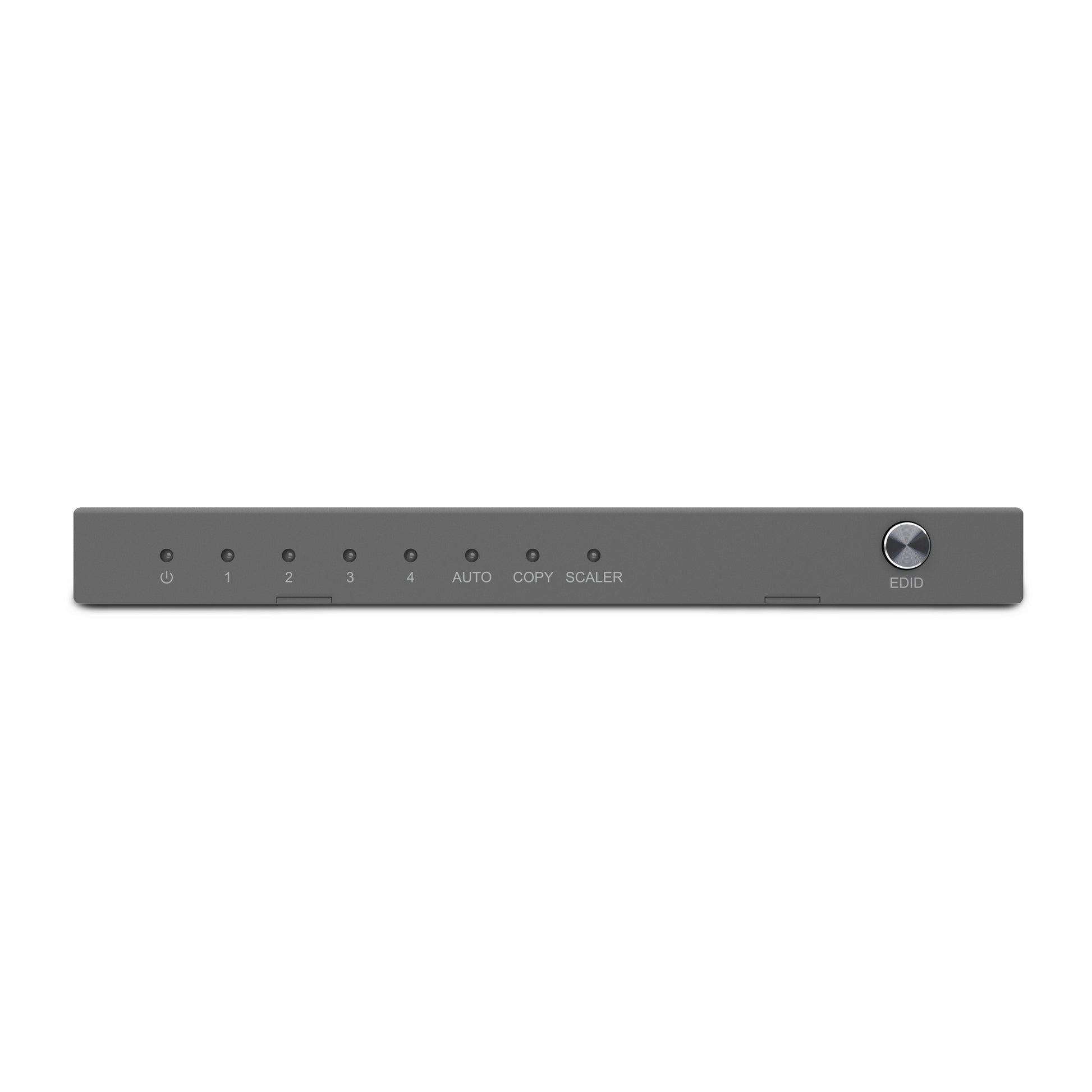

  • If desired, manually set the maximum video resolution on the HDMI output using the unique EDID switch.
  • Suitable for business use, such as meeting rooms, retail presentations, or digital signage applications.
  • Easy to integrate by professional AV installers into commercial installations where reliability is essential.


With the Split 614 Pro, you can split the 4K HDMI signal from your decoder or another HDMI source to 4 TVs or projectors. Ideal when you want to show the same presentation, video, or information simultaneously on 4 screens, both at home and in professional environments.

This 4K HDMI splitter is perfectly suitable for connection to the latest Ultra HD equipment with HDMI 2.0 and HDCP 2.2 and offers a stable and high-quality solution for both private and business use.

    Technical specifications

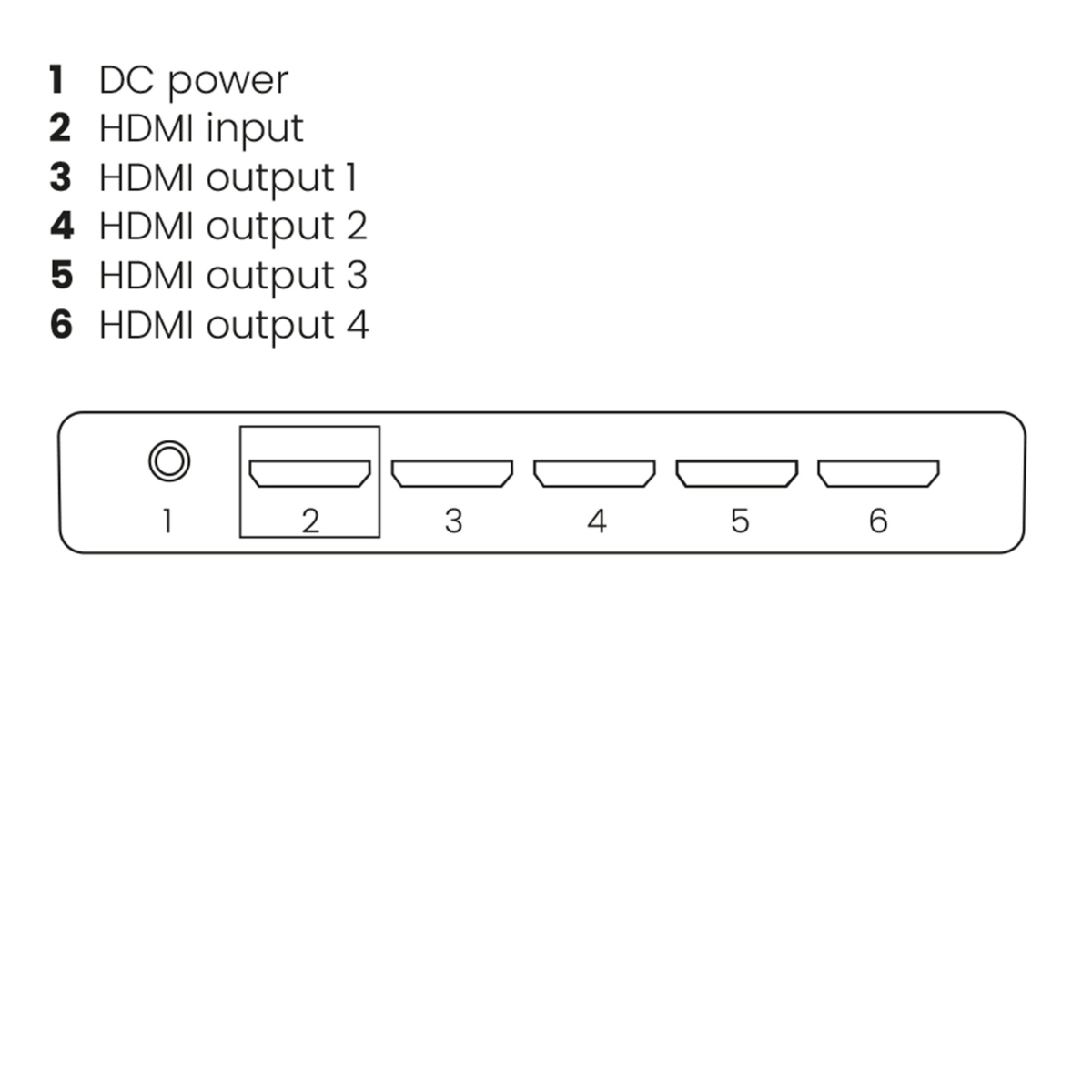

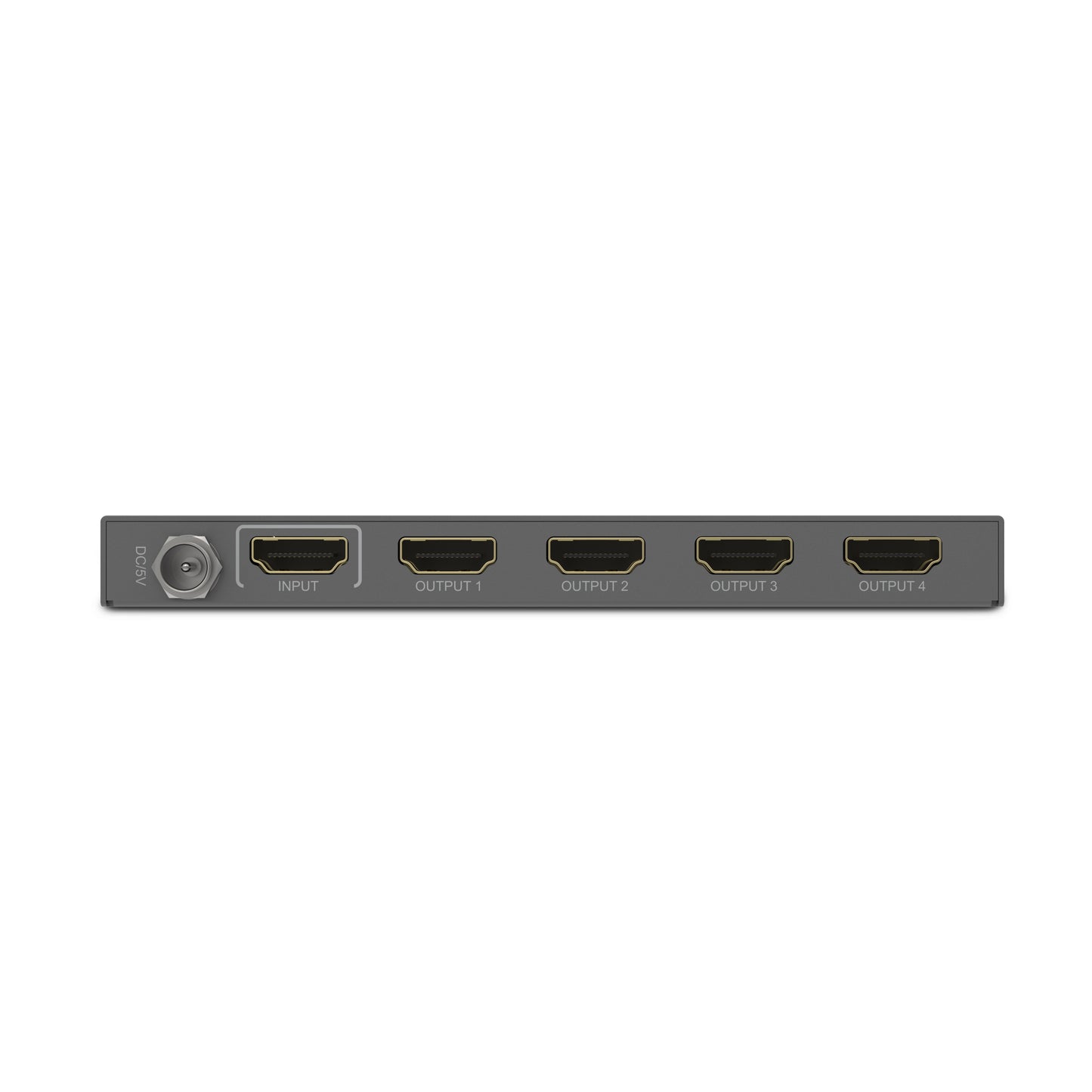

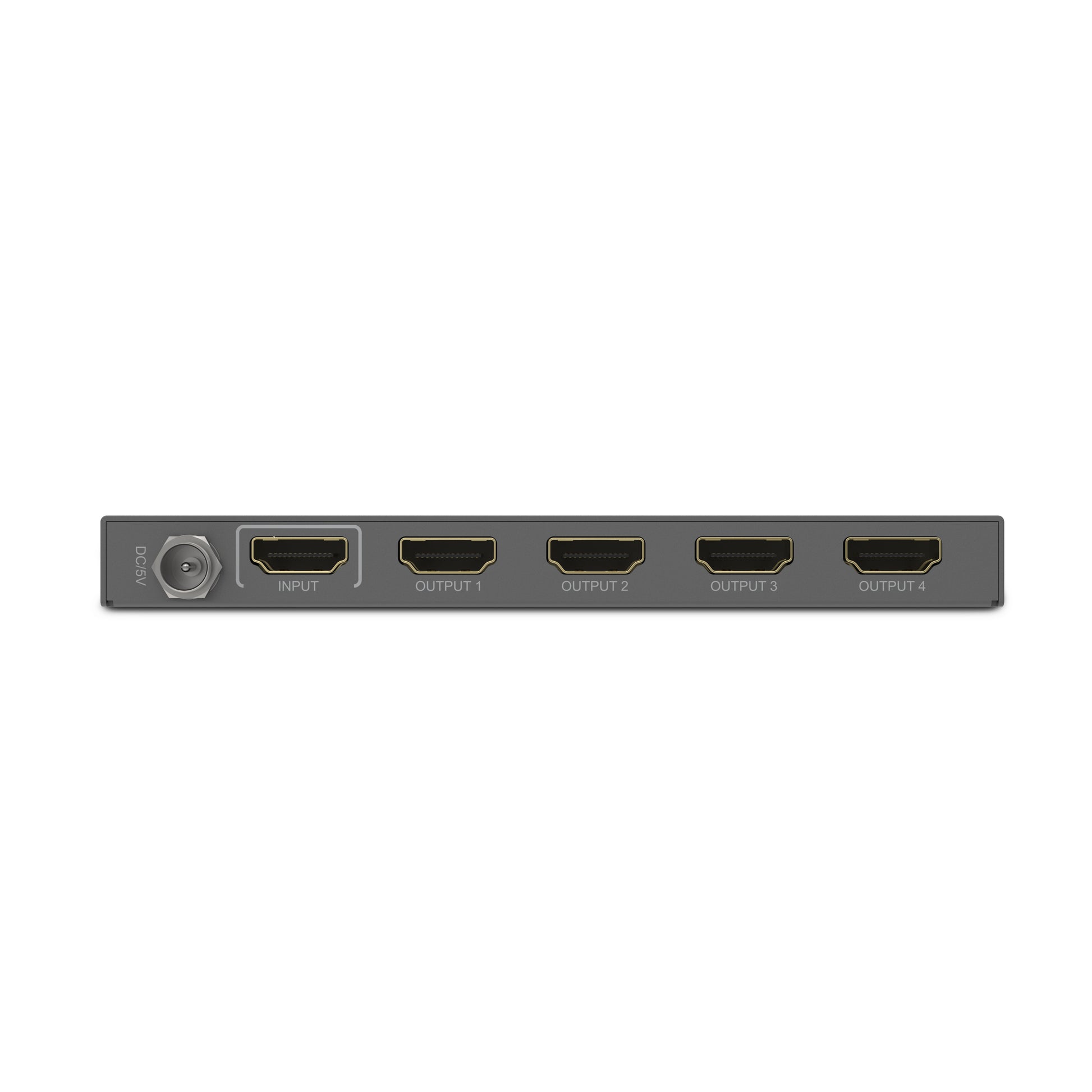

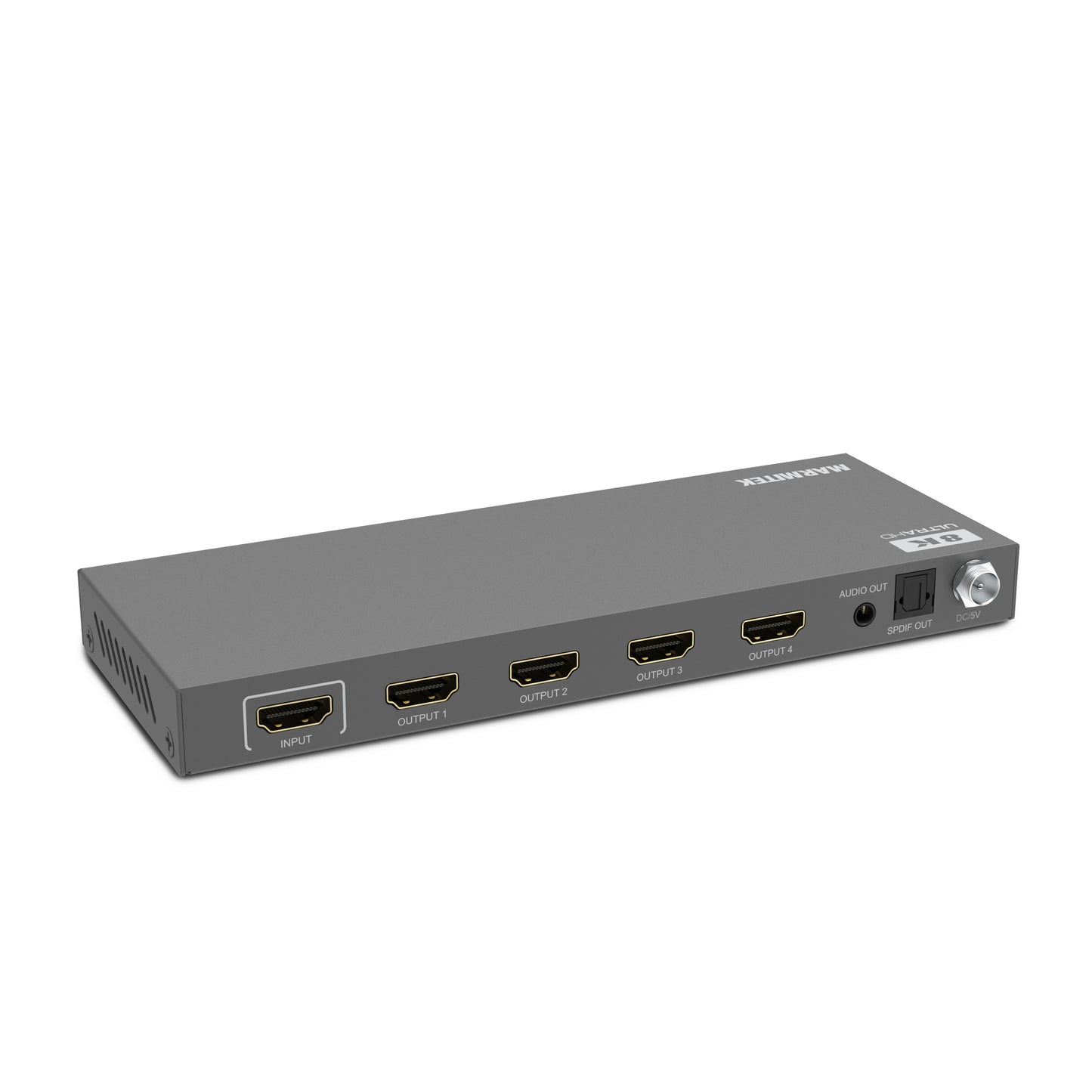

    Connections
    AV input 1x HDMI
    AV output 4x HDMI
    General

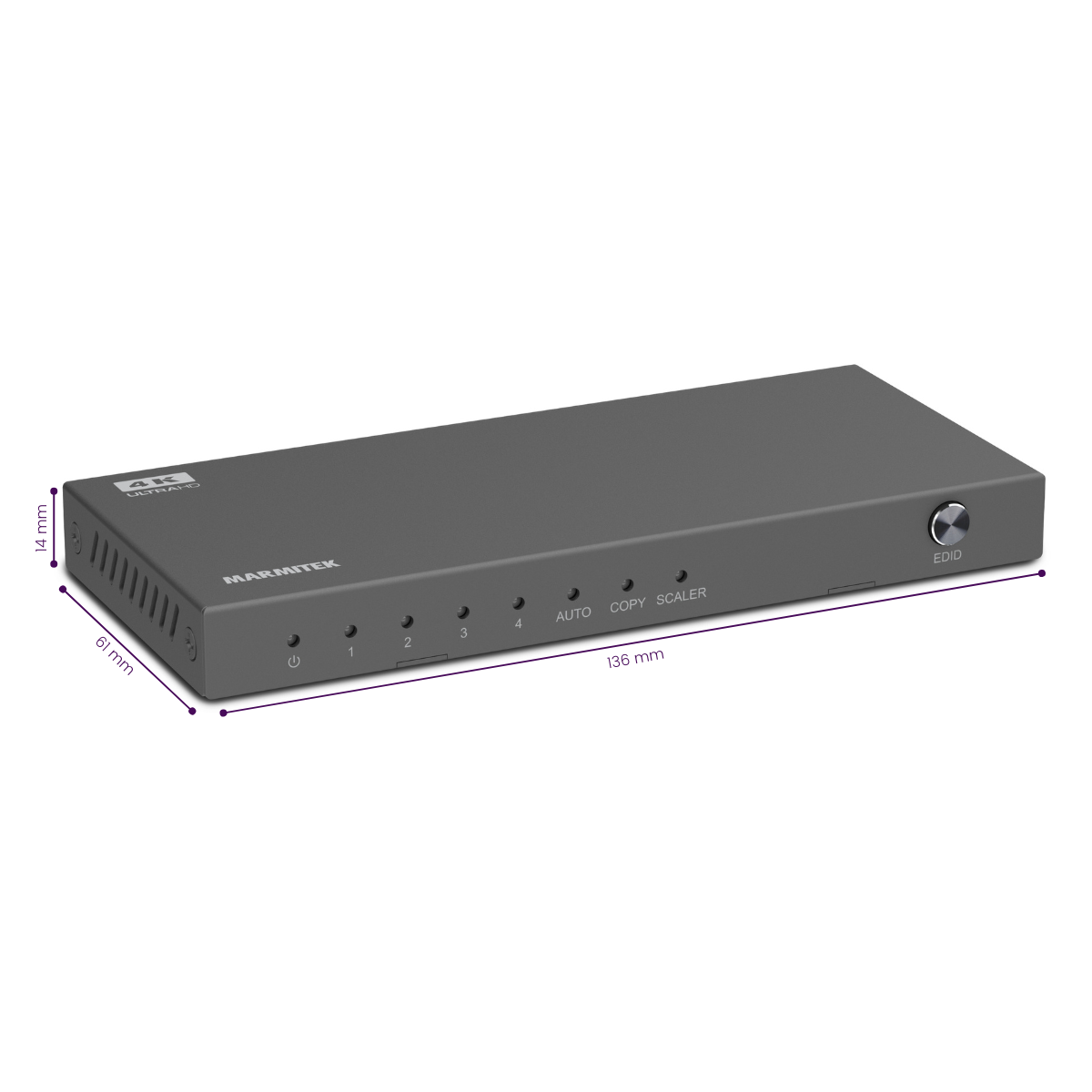

    Dimensions (H x W x D) 14 x 136 x 61 mm
    Weight 180 grams
    Ambient temperature +0 to +40°C
    Humidity 20% to 90%
    Power supply 100-240 VAC 50/60 Hz, 5 VDC adapter
    Audio
    HDMI audio DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/AC3, DTS 5.1 and PCM stereo
    Video
    HDTV Resolution Max. 2160@60Hz
    PC Resolution Max. 2560 x 2048
    Video Bandwidth 18 Gbps
    Clock Frequency Max. 600 MHz
    HDMI Standard HDMI 2.0b, HDR, HDMI 1.4, EDID, DVI, Deep Color 36-bit, x.v. Color and all 3D formats
    HDCP Standard HDCP 1.4/2.2
    Color depth Max 36-bit
    Color Formats RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2

    Reseñas

    Customer Reviews

    Be the first to write a review
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)

    Frequently asked questions

    Does the image quality remain the same when using this HDMI splitter?

    When using an HDMI splitter, the video signal is not damaged. The image quality and the color output from the source device to the screen remain the same. Keep in mind that you should buy an HDMI splitter that supports the maximum resolution of your source device.

    Both connected displays have a different resolution, what happens to the video resolution?

    When two displays with different resolutions are used, the HDMI splitter ensures that there is an image on the screen. To do this, the splitter uses 'Extended Display Identification Data' (EDID) to indicate what type of video should be sent by the source device. There are a few modes that can be used: - 'Auto': Automatically detects the highest possible common video resolution and audio format supported by both display devices. - 'Copy': Detects only the video resolution and audio format of the display connected to output 1.

    Can I use the 'Extend' mode on my PC with this HDMI splitter?

    HDMI is a protocol that cannot send much information back to the source device. Therefore, HDMI splitters can only copy the incoming signal and cannot extend the screens on your PC. In short: all outputs of the HDMI splitter will display the same screen.

    No video is playing on the screen

    If no video is displayed on the screen or if the image quality is poor, there are a few steps you should follow to make the setup work. - When setting up the devices, make sure all cables and devices have the correct HDMI version. - Make sure all devices comply with the same HDCP version. - Try to use HDMI cables with a maximum length of 5 meters. Longer cables may work, but the quality of the video signal decreases quickly after 5 meters. - Try using a different HDMI port on your display; this may help to reset the connection.
