Always included
- Audio converter
- Power adapter
- User manual
Connect TC22
Audio converter - Toslink to coaxial
NOTE: EU PLUG ONLY.
This audio converter makes it possible to switch from optical (Toslink) to coaxial and vice versa. Use the Connect TC22 if your TV has a Toslink output while your amplifier still has a free coaxial... read more
€ 39,99
In stock
Convert Toslink (optical) to digital coaxial audio
Two-way conversion; optical to coaxial or coaxial to optical
Signal is displayed on both outputs
Yes! Free Shipping!
Estimated delivery: 9 may - 16 may
Couldn't load pickup availability
Connect TC22
Audio converter - Toslink to coaxial
Convert Toslink (optical) to digital coaxial audio
Two-way conversion; optical to coaxial or coaxial to optical
Signal is displayed on both outputs
€ 39,99
Product description
Convert your Toslink signal into a digital coaxial signal, or vice versa
- Convert your Toslink audio signal into a digital coaxial audio signal (or vice versa).
- Ideal if your audio source has a different audio digital output than your audio amplifier, for example.
- Two-way conversion
- optical to coaxial or coaxial to optical.
- Amplifies the digital audio signal and thus extends the maximum cable length (optical/coaxial).
- Supports the most common 2 to 5.1 channel digital audio signals.
- The digital audio signal provided is simultaneously reproduced on both outputs (both Toslink and coaxial).
It's always tricky if a TV has a Toslink output while the amplifier still has a free coaxial input. Both fine, but there's no direct connection possible. Conversely, this can occur just as well. Thanks to the Connect TC22 you can switch both from optical (Toslink) to coaxial and back. Thus, the Connect TC22 makes it possible to always use the digital input or output that is still available.
Technical specifications

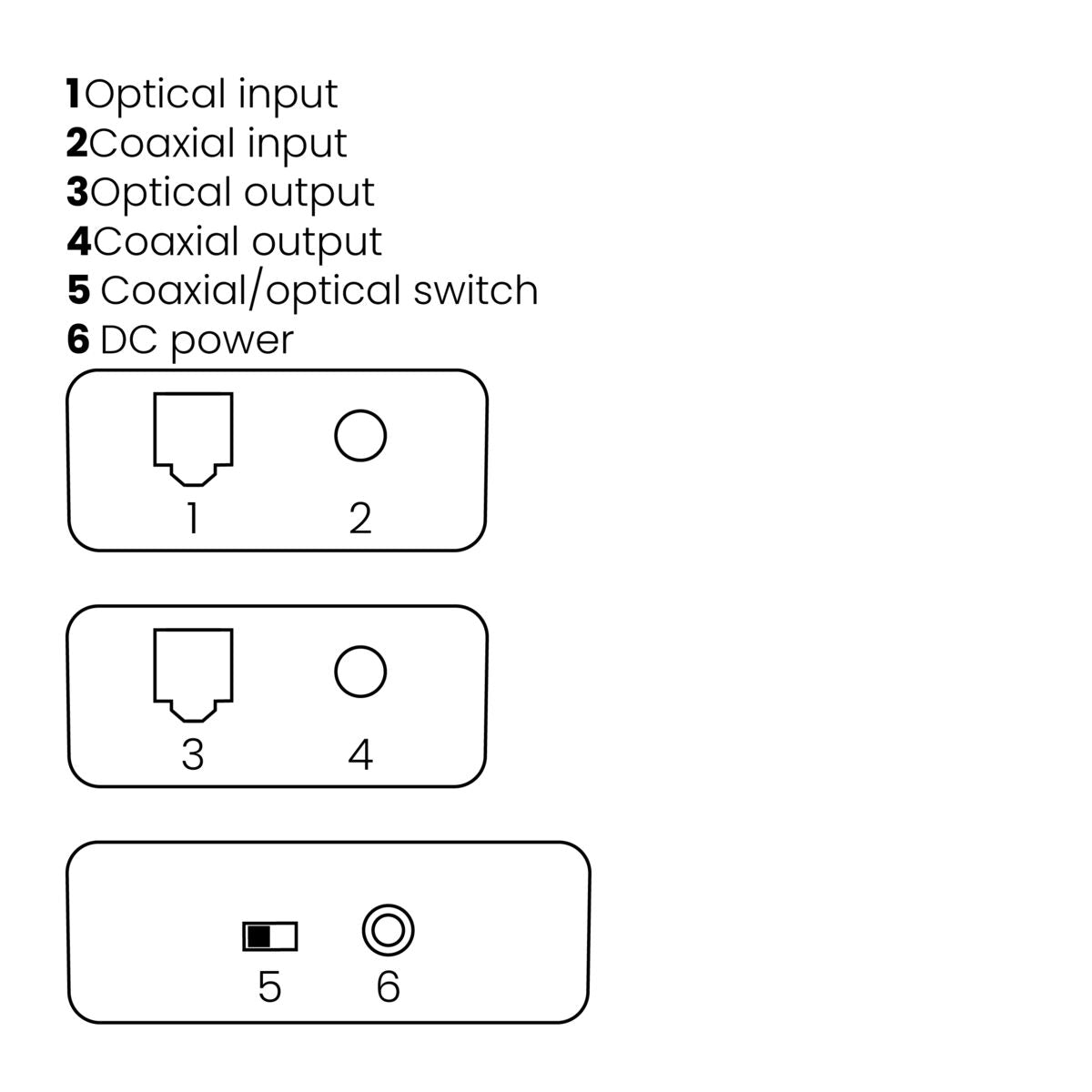

Connections
Audio Input
1x Toslink (Optical), 1x Coaxial (RCA)
Audio Output
1x Toslink (Optical), 1x Coaxial (RCA)
General
Dimensions (h x w x d)
23 x 51 x 80 mm
Weight
45 grams
Power supply
100-240 VAC 50/60 Hz, 5 VDC adapter
Audio
Audio formats
Dolby Digital/AC3, DTS 5.1 and 2 CH PCM stereo
Downloads
Reviews
What customers say
Frequently asked questions
-
I noticed that I can convert both optical and coaxial digital input to optical or digital output. Can I also use the device to connect two optical cables and thus create one long cable?
This audio switch could also be used to create a long cable, but is of course intended for situations when the digital audio output does not match the digital input of, for example, your receiver.
