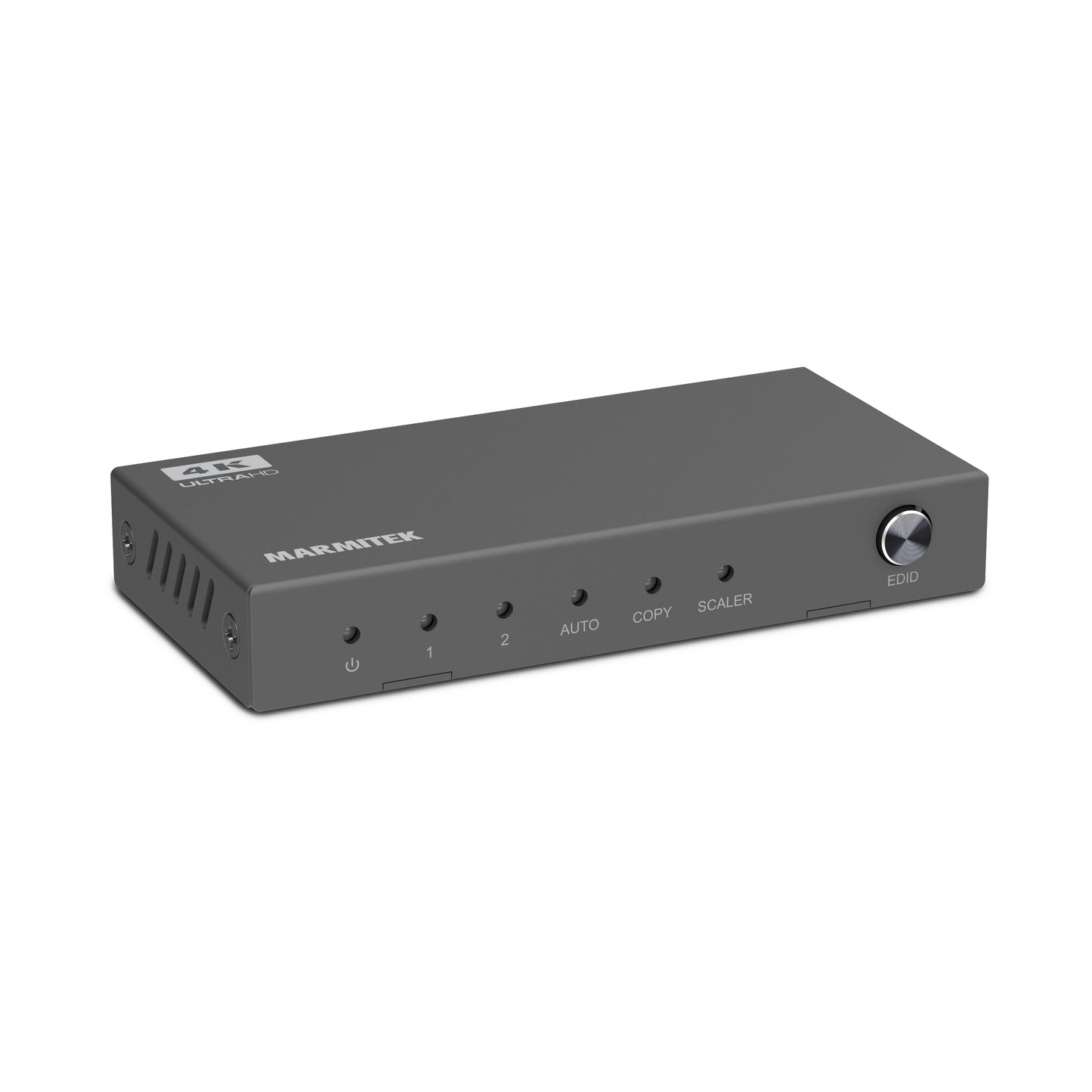

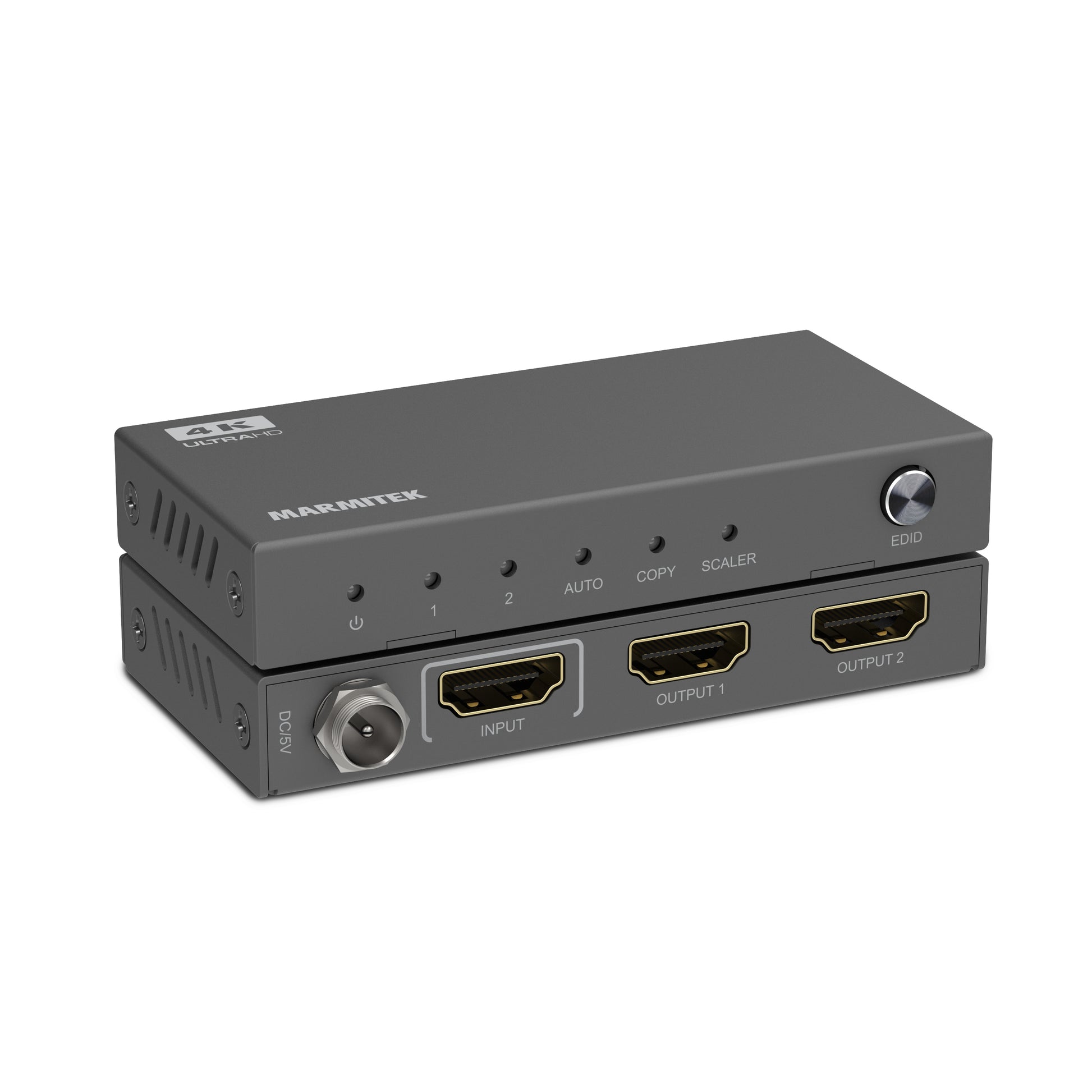

Split 612 Pro HDMI splitter 4K 60Hz - 1 in / 2 out

1 13

Always included

HDMI splitter
HDMI cable | 150 cm
Power adapter | 150 cm
User manual

Split 612 Pro

HDMI splitter 4K 60Hz - 1 in / 2 out

In stock

€ 79,99

_{(incl. VAT)}

Title EU

Product variants

With this HDMI splitter 4K, you can split the HDMI signal from a decoder or another HDMI source to 2 TVs. Ideal for simultaneously displaying the same presentation, video, or information on 2 screens, either at home or in professional environments such as meeting rooms, stores, or showrooms. The Split 612 Pro supports 4K and 3D and is therefore suitable for connection to professional Ultra HD screens. If desired, you can manually set the maximum video resolution on the HDMI output using the unique EDID switch.

Split an HDMI signal to 2 TVs

Supports Ultra HD 4K60, HDR, Deep Color, 4:4:4 Chroma Colors (18 Gbps)

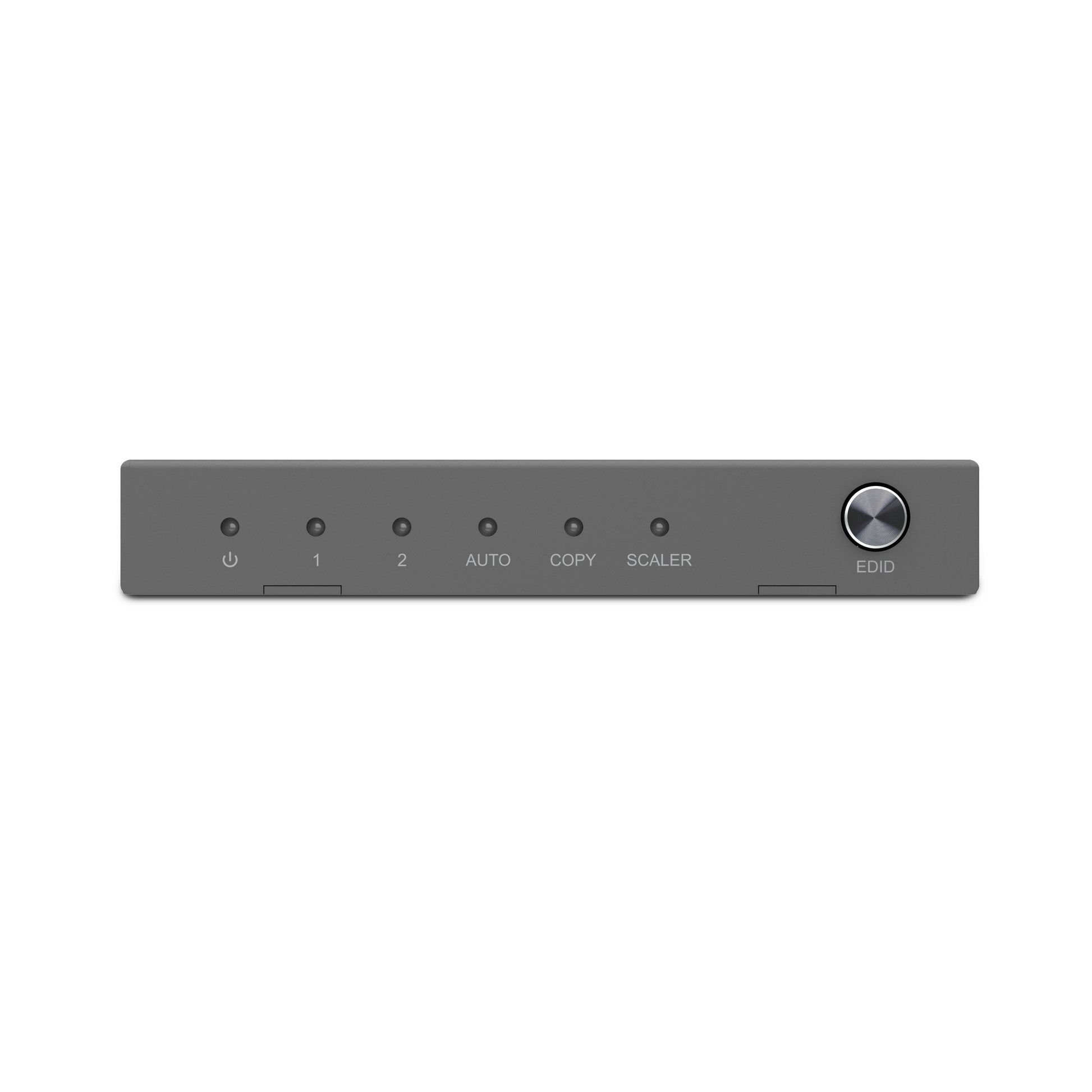

EDID switch

View full details

Split 612 Pro

€ 79,99

Product description

Split an HDMI signal to 2 TVs or projectors.

Suitable for Ultra HD 4K60 resolution (3840 x 2160/60 Hz), High Dynamic Range (HDR), Deep Color, and 4:4:4 chroma colors.
Use the downscale function to display videos in the highest possible resolution on all screens
With built-in repeater and equalizer for correcting any signal loss.
Supports Dolby Atmos and DTS:X as well as all other common audio formats.
Interference-free thanks to solid metal, interference-proof quality housing.
Optionally determine the maximum video resolution on the HDMI output yourself using the unique EDID switch.
Suitable for business use, such as meeting rooms, retail presentations, or digital signage applications.
Easy to integrate by professional AV installers into commercial installations where reliability is essential.

With the Split 612 Pro, you can split the 4K HDMI signal from your decoder or another HDMI source to 2 TVs or projectors. Ideal when you want to display the same presentation, video, or information simultaneously on 2 screens, both at home and in professional environments.

This 4K HDMI splitter is perfectly suitable for connection to the latest Ultra HD equipment with HDMI 2.0 and HDCP 2.2 and offers a stable and high-quality solution for both private and business use.

Technical specifications

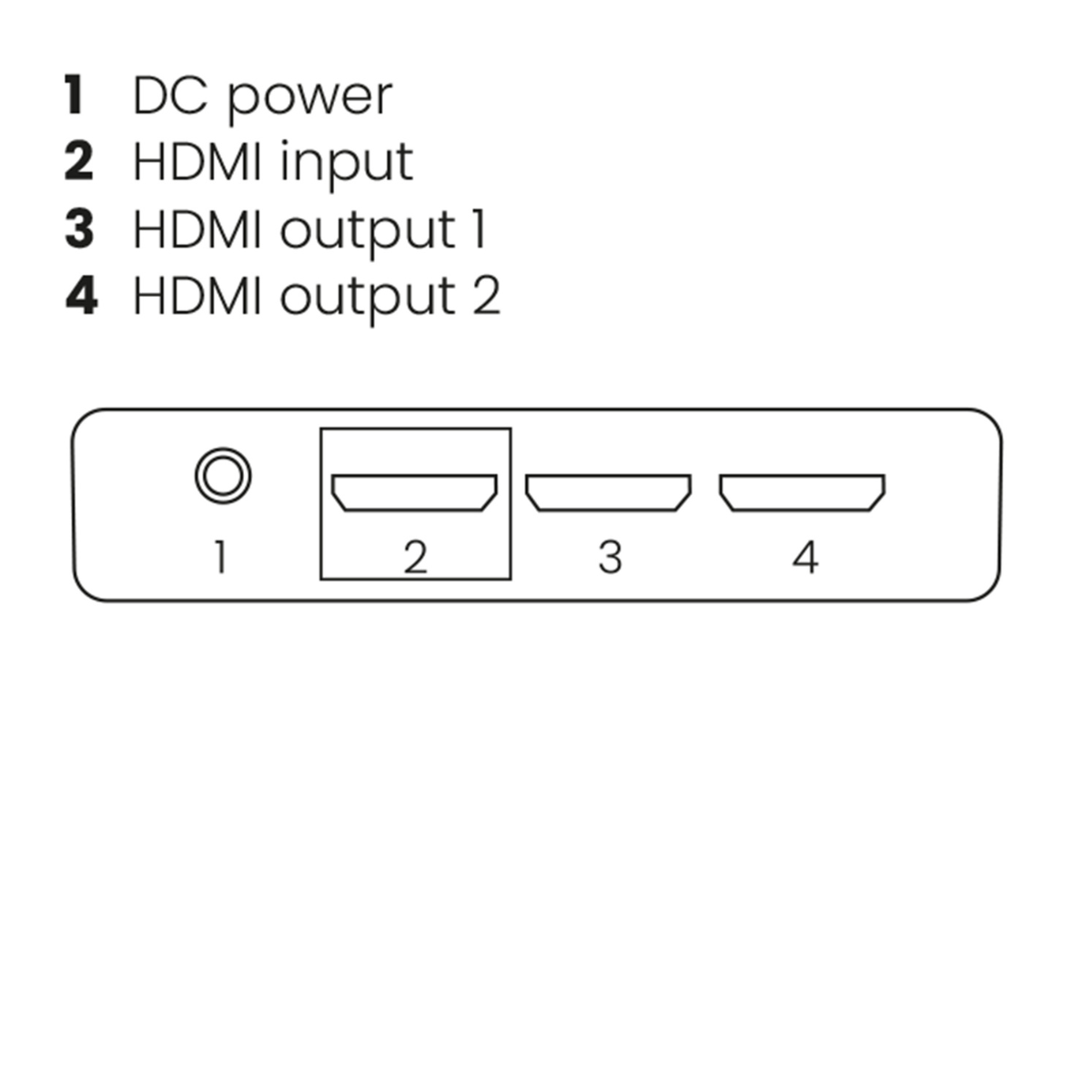

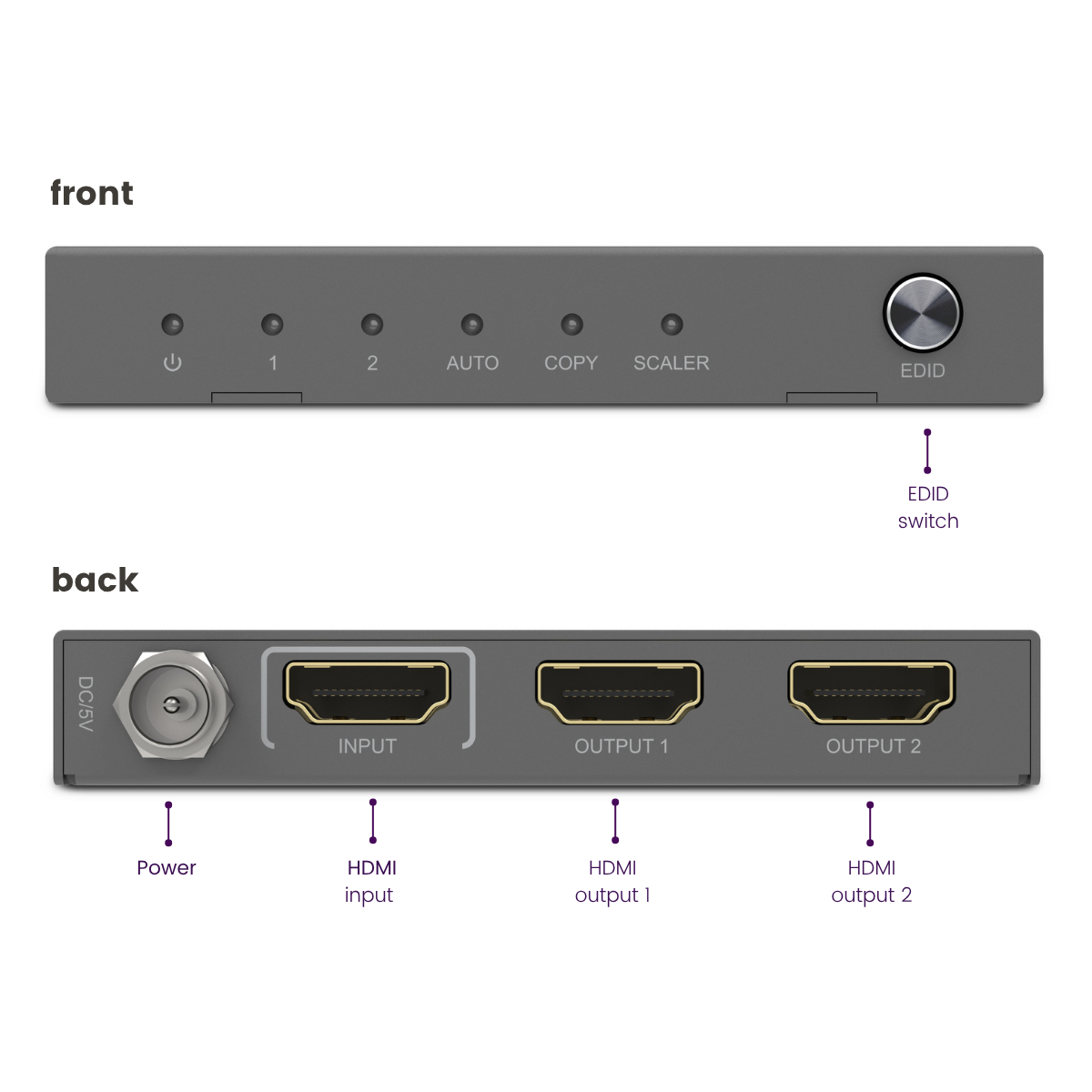

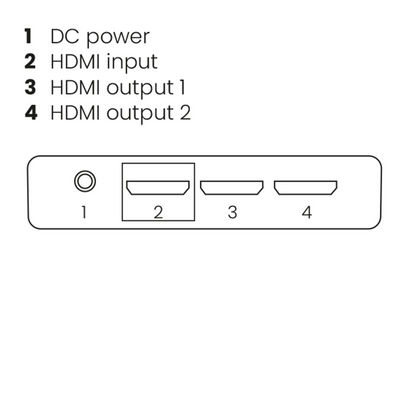

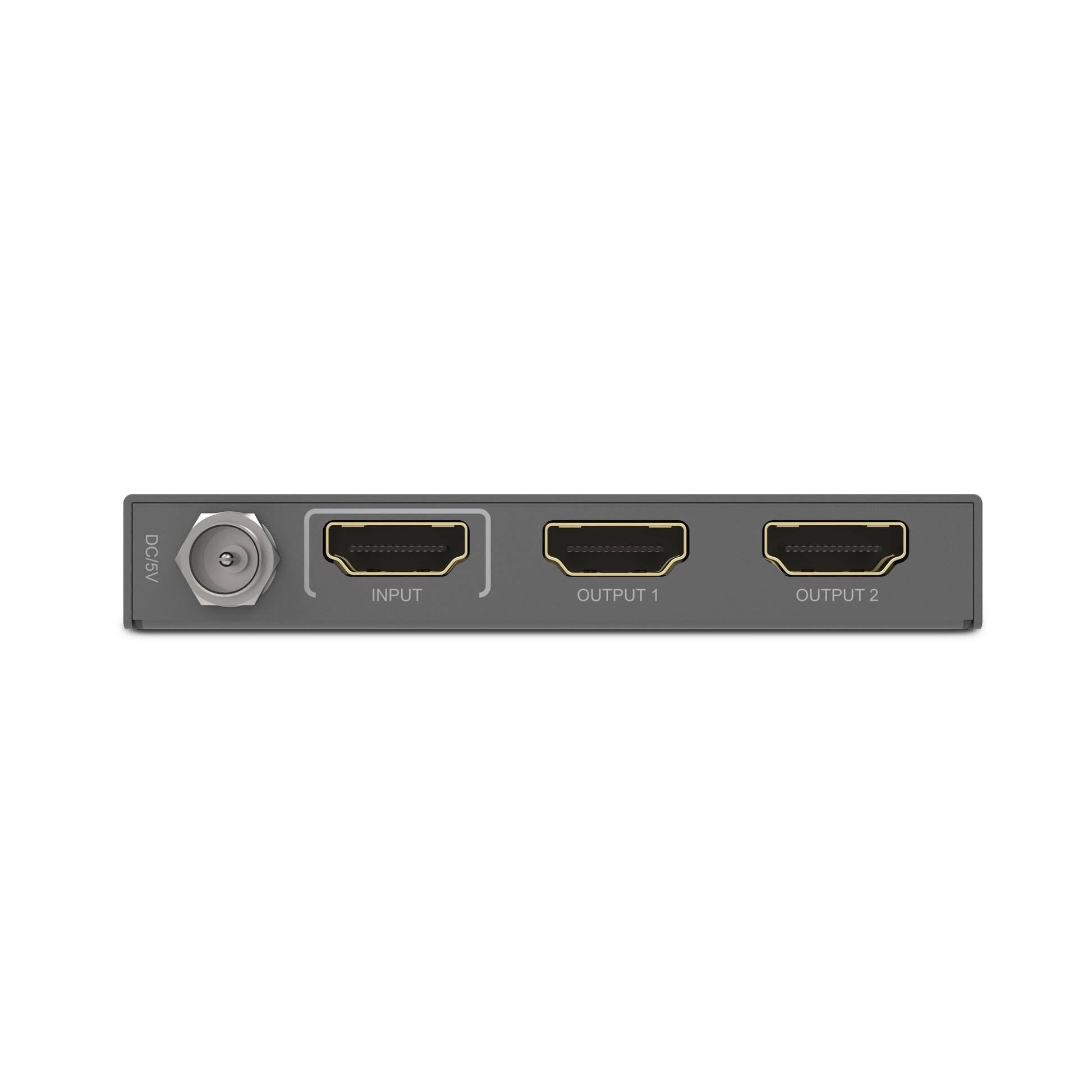

Connections

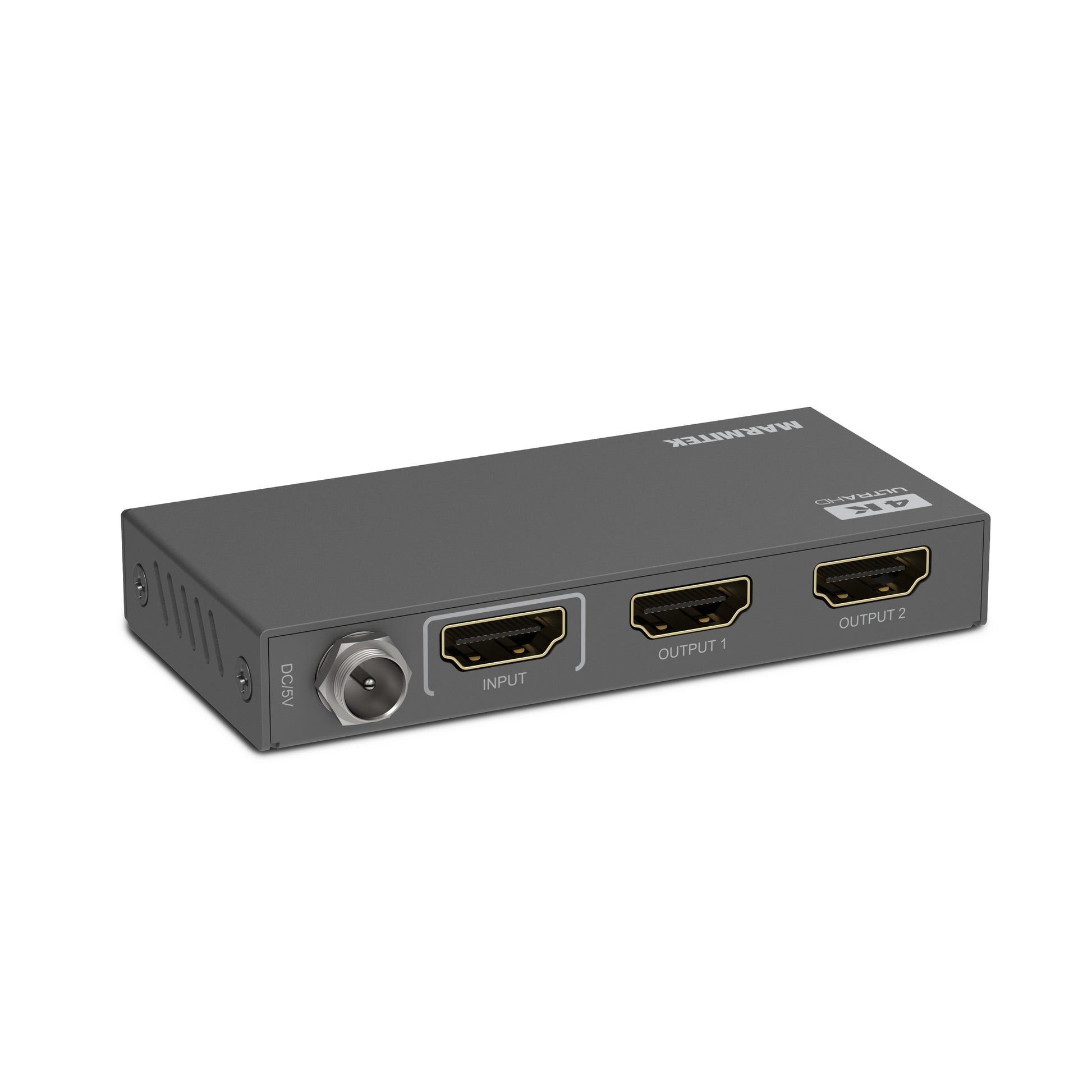

AV input 1x HDMI

AV output 2x HDMI

General

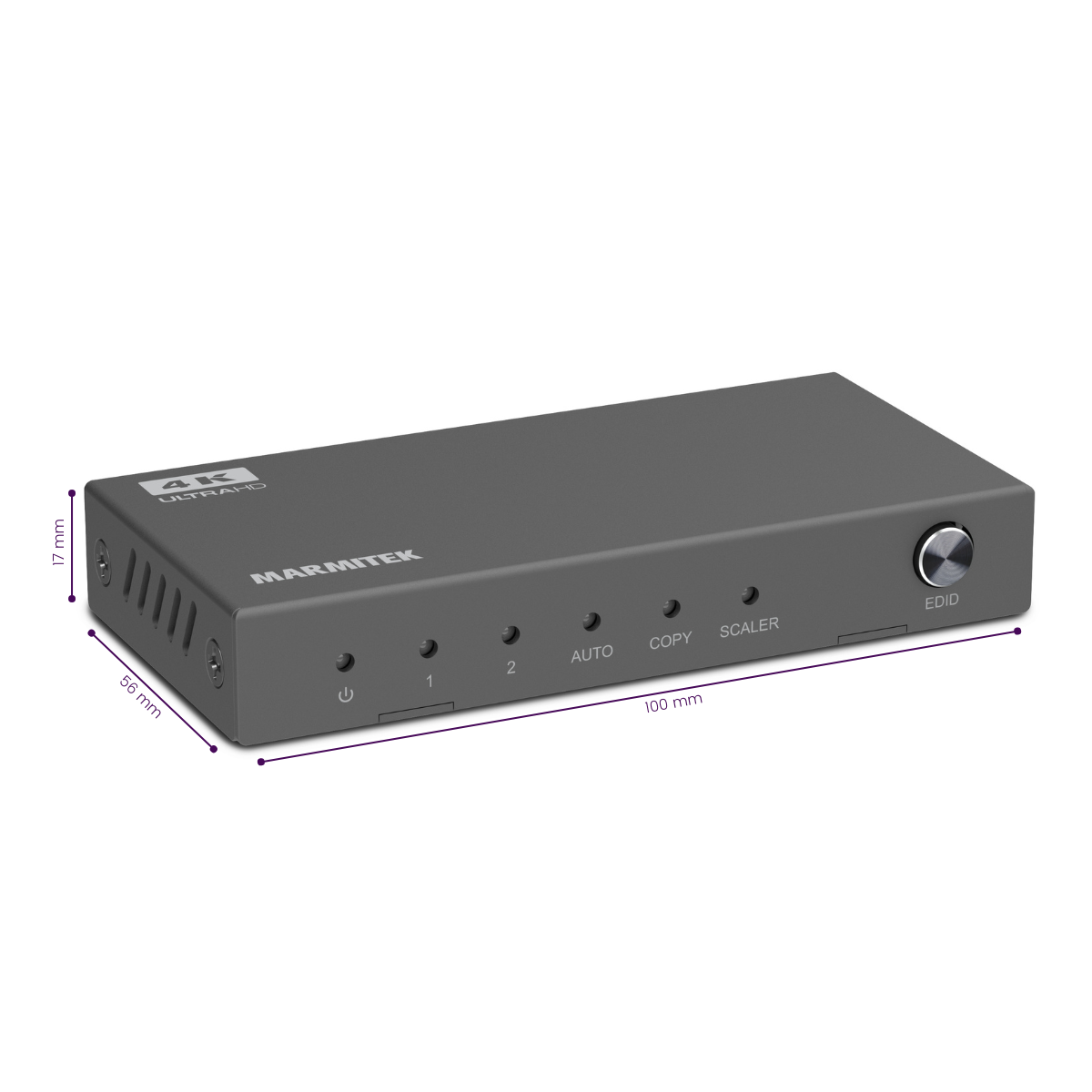

Dimensions (H x W x D) 14 x 90 x 44 mm

Weight 90 grams

Ambient temperature +0 to +40°C

Humidity 20% to 90%

Power supply 100-240 VAC 50/60 Hz, 5 VDC adapter

Audio

HDMI audio DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/AC3, DTS 5.1 and PCM stereo

Video

HDTV Resolution Max 2160@60Hz

PC Resolution Max 2560 x 2048

Video Bandwidth 18 Gbps

Clock Frequency Max 600MHz

HDMI Standard HDMI 2.0b, HDR , HDMI 1.4, EDID, DVI, Deep Color 36-bit, x.v. Color and all 3D formats

HDCP Standard HDCP 1.4/2.2

Color Depth Max 36-bit

Color Formats RGB and YCbCr 4: 4:4, 4:2:0 or 4:2:2 Audio

Downloads

User manual
Product leaflet
Compare our HDMI Splitters

Reseñas

Frequently asked questions

Does the image quality remain the same when using this HDMI splitter?

When using an HDMI splitter, the video signal is not damaged. The image quality and the color output from the source device to the screen remain the same. Keep in mind that you should buy an HDMI splitter that supports the maximum resolution of your source device.

Both connected displays have a different resolution, what happens to the video resolution?

When two displays with different resolutions are used, the HDMI splitter ensures that there is an image on the screen. To do this, the splitter uses 'Extended Display Identification Data' (EDID) to indicate what type of video should be sent by the source device. There are a few modes that can be used: - 'Auto': Automatically detects the highest possible common video resolution and audio format supported by both display devices. - 'Copy': Detects only the video resolution and audio format of the display connected to output 1.

Can I use the 'Extend' mode on my PC with this HDMI splitter?

HDMI is a protocol that cannot send much information back to the source device. Therefore, HDMI splitters can only copy the incoming signal and cannot extend the screens on your PC. In short: all outputs of the HDMI splitter will display the same screen.

No video is playing on the screen

If no video is displayed on the screen or if the image quality is poor, there are a few steps you should follow to make the setup work. - When setting up the devices, make sure all cables and devices have the correct HDMI version. - Make sure all devices comply with the same HDCP version. - Try to use HDMI cables with a maximum length of 5 meters. Longer cables may work, but the quality of the video signal decreases quickly after 5 meters. - Try using a different HDMI port on your display; this may help to reset the connection.
