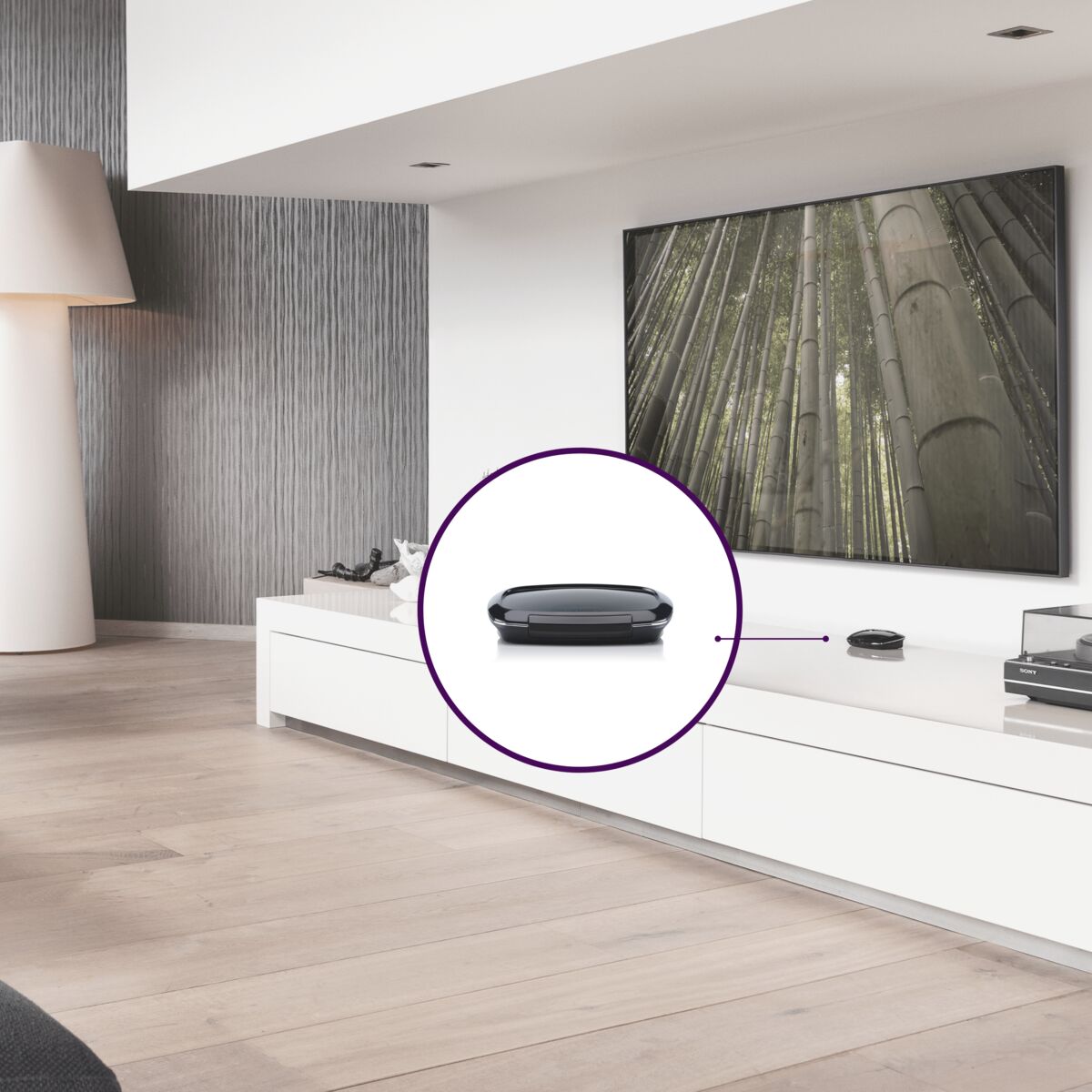

  • Invisible Control Black 4 - IR extender - Ambiace Image of a TV ann TV cabinet wioth a close up of the IR module/receiver | Marmitek

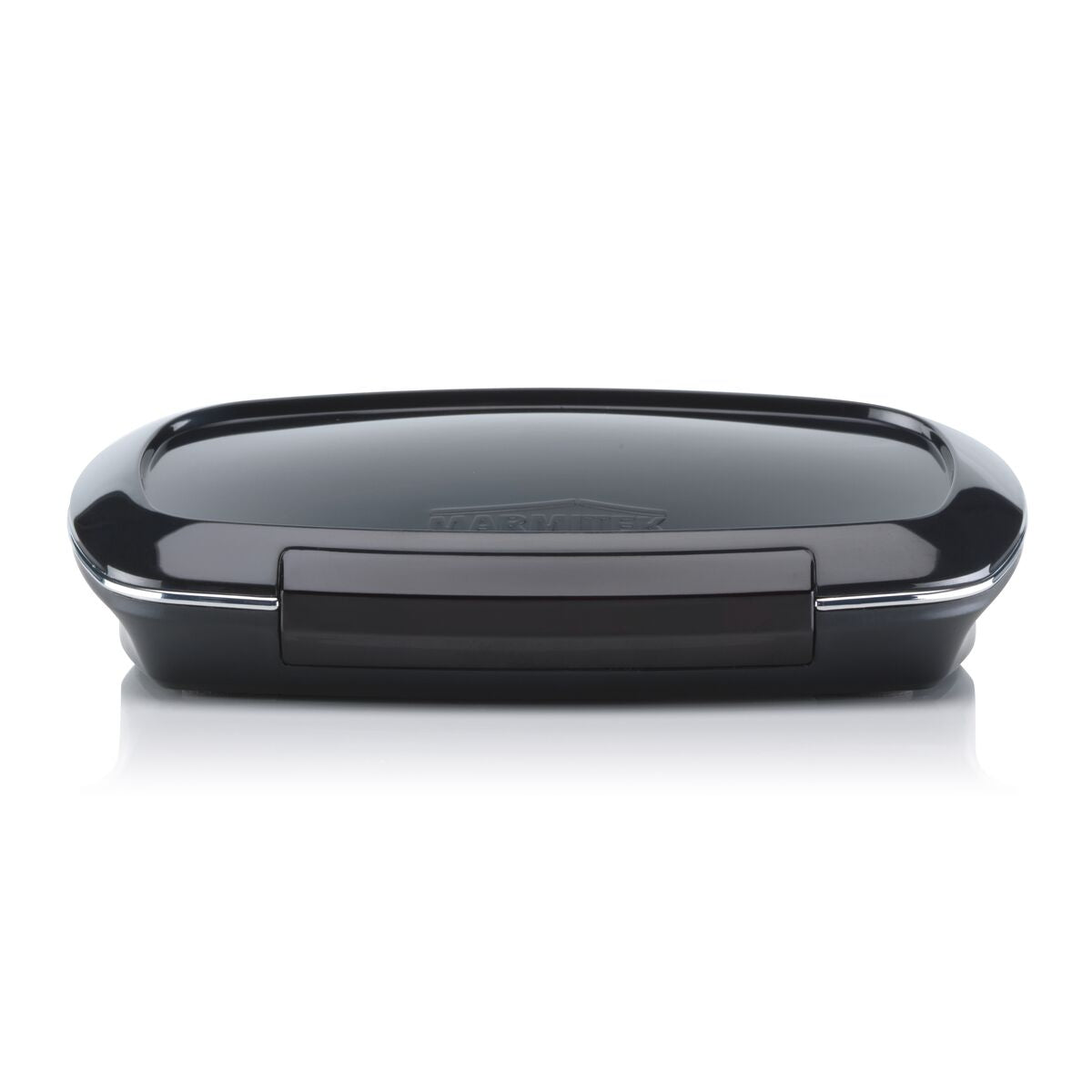

  • Invisible Control Black 4 - IR extender - Front View Image | Marmitek

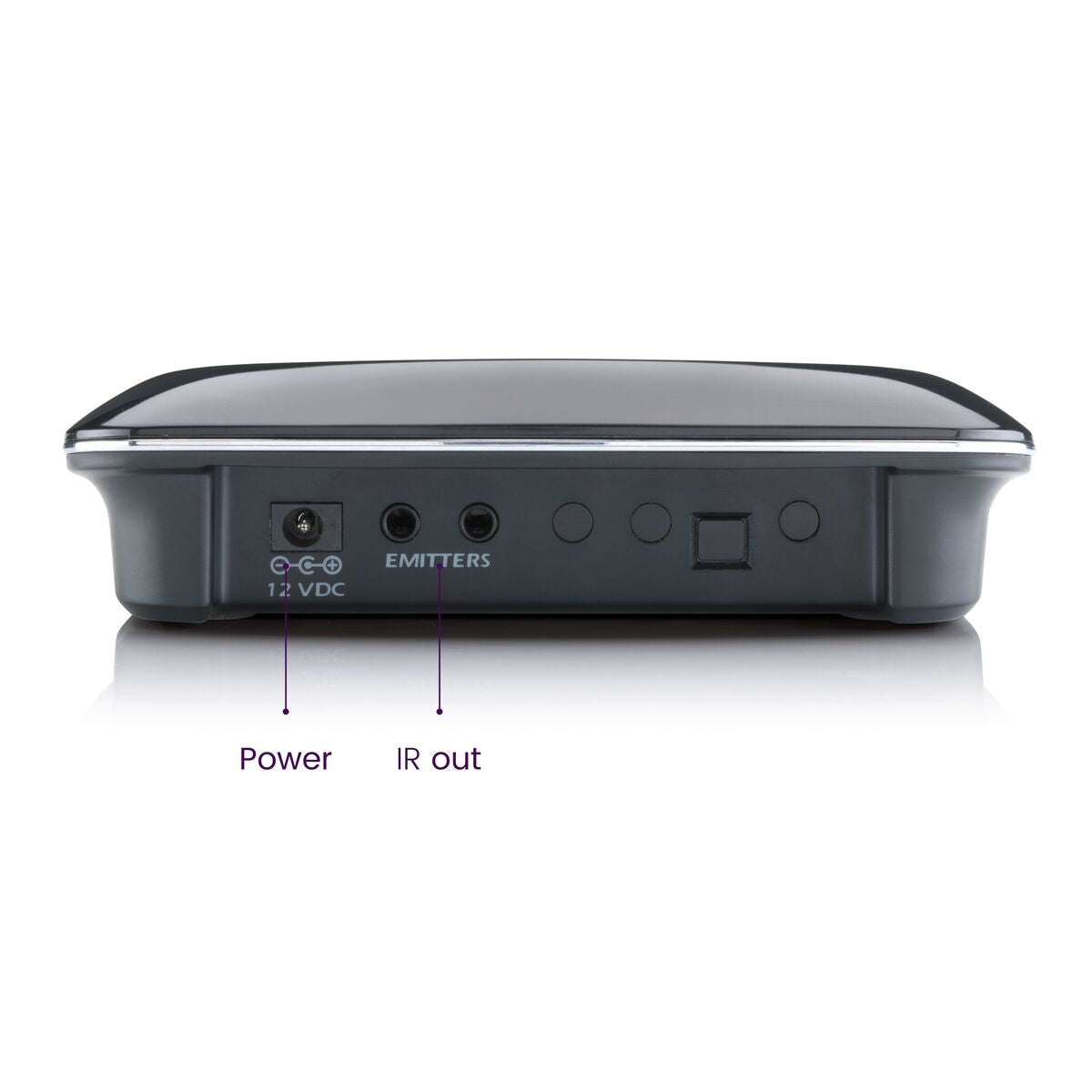

  • Invisible Control Black 4 - IR extender - Back View Image Connections with text | Marmitek

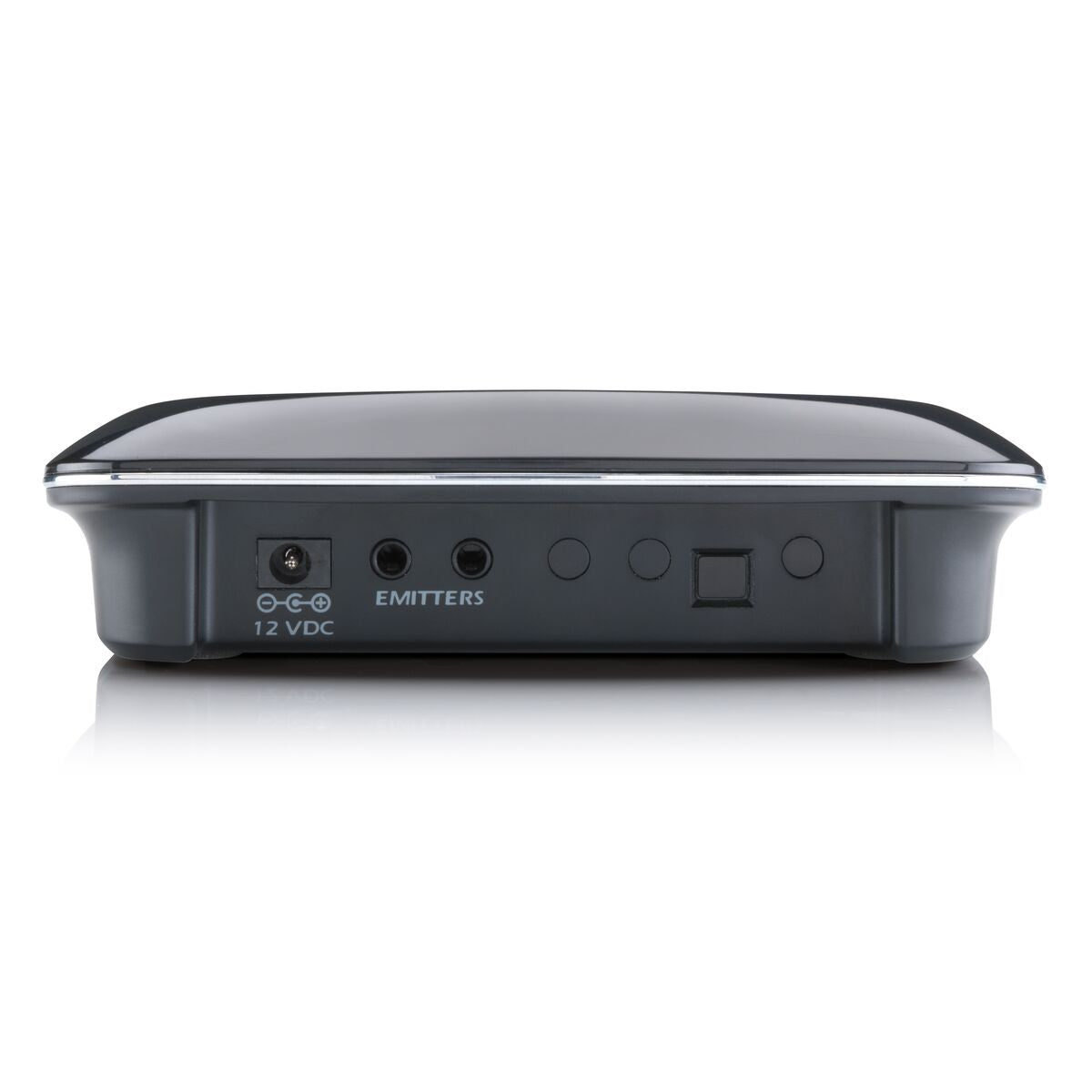

  • Invisible Control Black 4 - IR extender - Back View Image | Marmitek

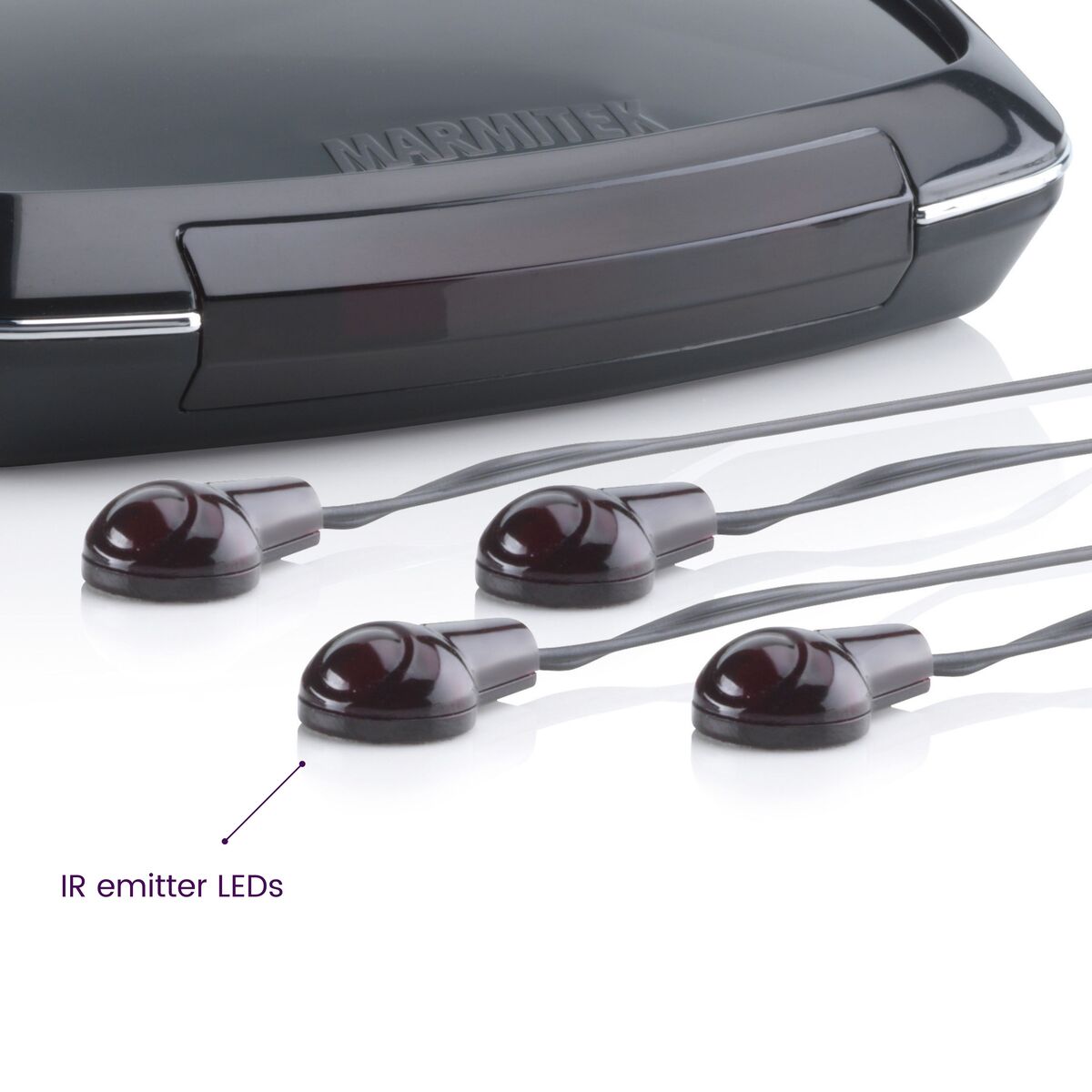

  • Invisible Control Black 4 - IR extender - Detail Image of IR emitter LEDs | Marmitek

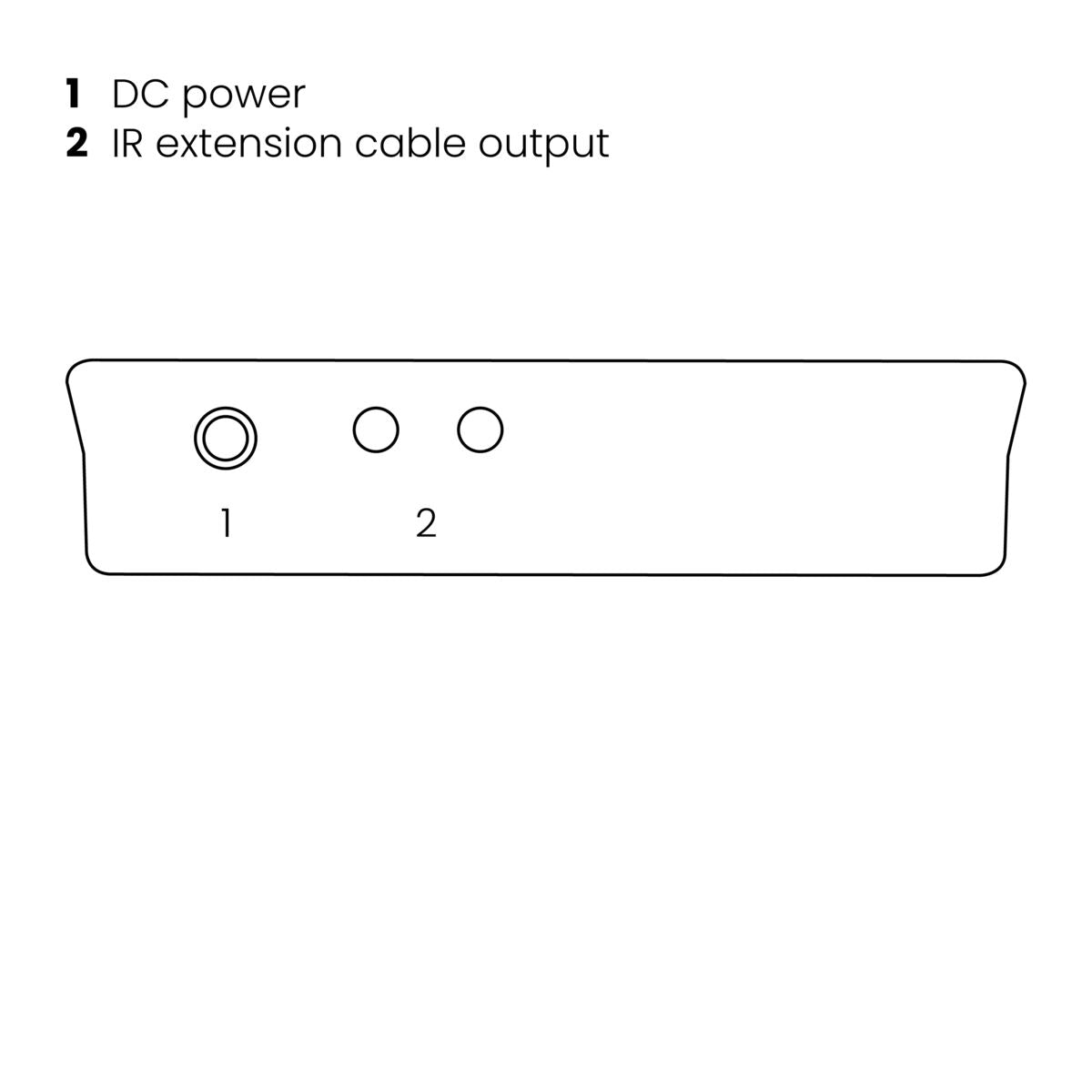

  • Invisible Control Black 4 - IR extender - Connections Drawing | Marmitek
  • Invisible Control Black 4 - IR extender - Dimensions Image | Marmitek
  • Invisible Control Black 4 - IR extender - Set Content Image | Marmitek
  • Invisible Control Black 4 - IR extender - 3D Packshot Image | Marmitek
1 11

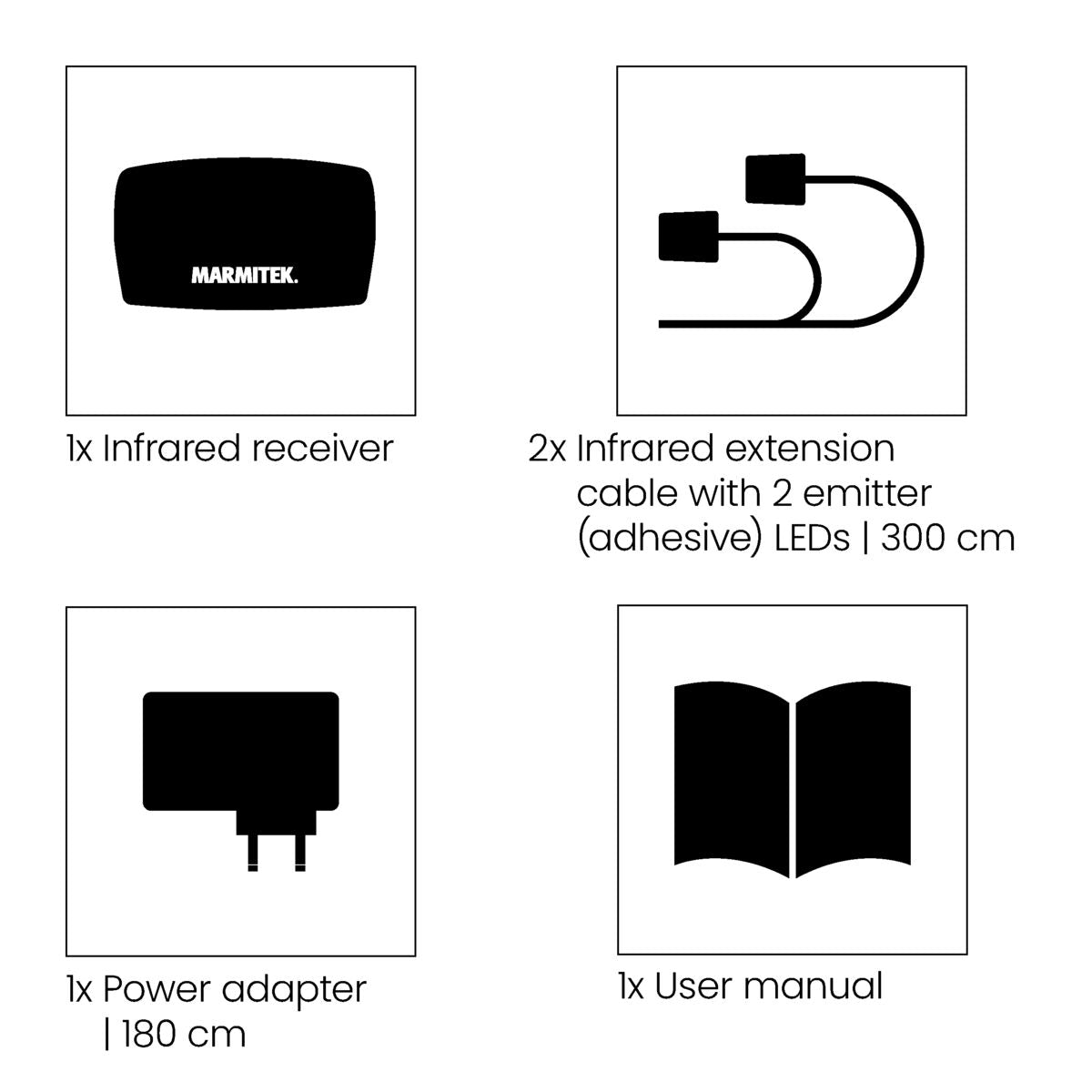

Always included

  • IR module

  • 2x IR extension cable with 2 emitter LEDs | 300 cm

  • Power adapter | 180 cm

  • User manual

Invisible Control Black 4
Invisible Control Black 4
IR extender - 4 appl.

In stock

€ 39,99
€ 39,99 € 39,99
(incl. VAT)
Title
With this IR extender, you can operate up to 4 audiovisual devices inside a closed cabinet, using your own remote control. The Invisible Control Black 4 consists of an IR module including an IR Receiver and 4 IR emitter LEDs. You stick an emitter LED on each device you want to operate. This enables you to operate up to 4 devices inside a closed cabinet, using your own remote control. The IR module is a small box that you place in the line of sight.

Control 4 AV devices

IR emitter LEDs

Tabletop IR receiver
View full details

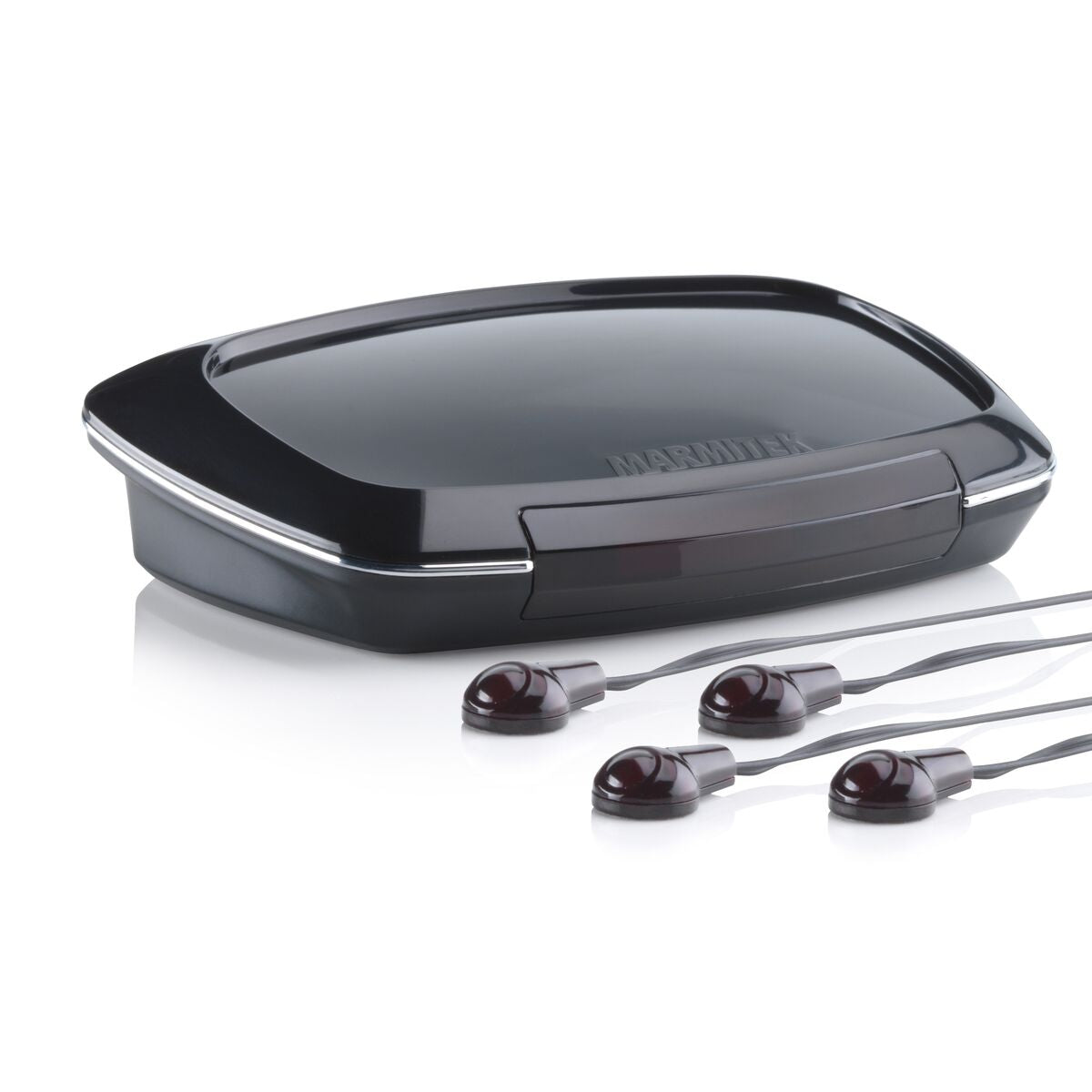

Invisible Control Black 4 - IR extender - Product Image | Marmitek
Invisible Control Black 4
€ 39,99

Product description

Operate up to 4 devices inside a closed cabinet, using your own remote control.

  • Intended to operate up to 4 devices inside a closed (TV) cabinet, using your own remote control.
  • Suitable for virtually all audio visual devices such as decoders, media boxes, Blu-ray players, hi-fi receivers and tuners.
  • Due to advanced filtering techniques, impervious to use near flat screen TVs (LCD, LED) and with indirect sunlight.
  • Works on 4 AAA batteries (not included) or on mains power (adapter included).

The Invisible Control Black 4 is an entry-level infrared extender that allows you to operate up to 4 audio visual devices.
By default, this infrared extender consists of a:

- Infrared module including a receiver: ‘receiver’
- Infrared transmitter: ‘transmitter’ (emitter LED)

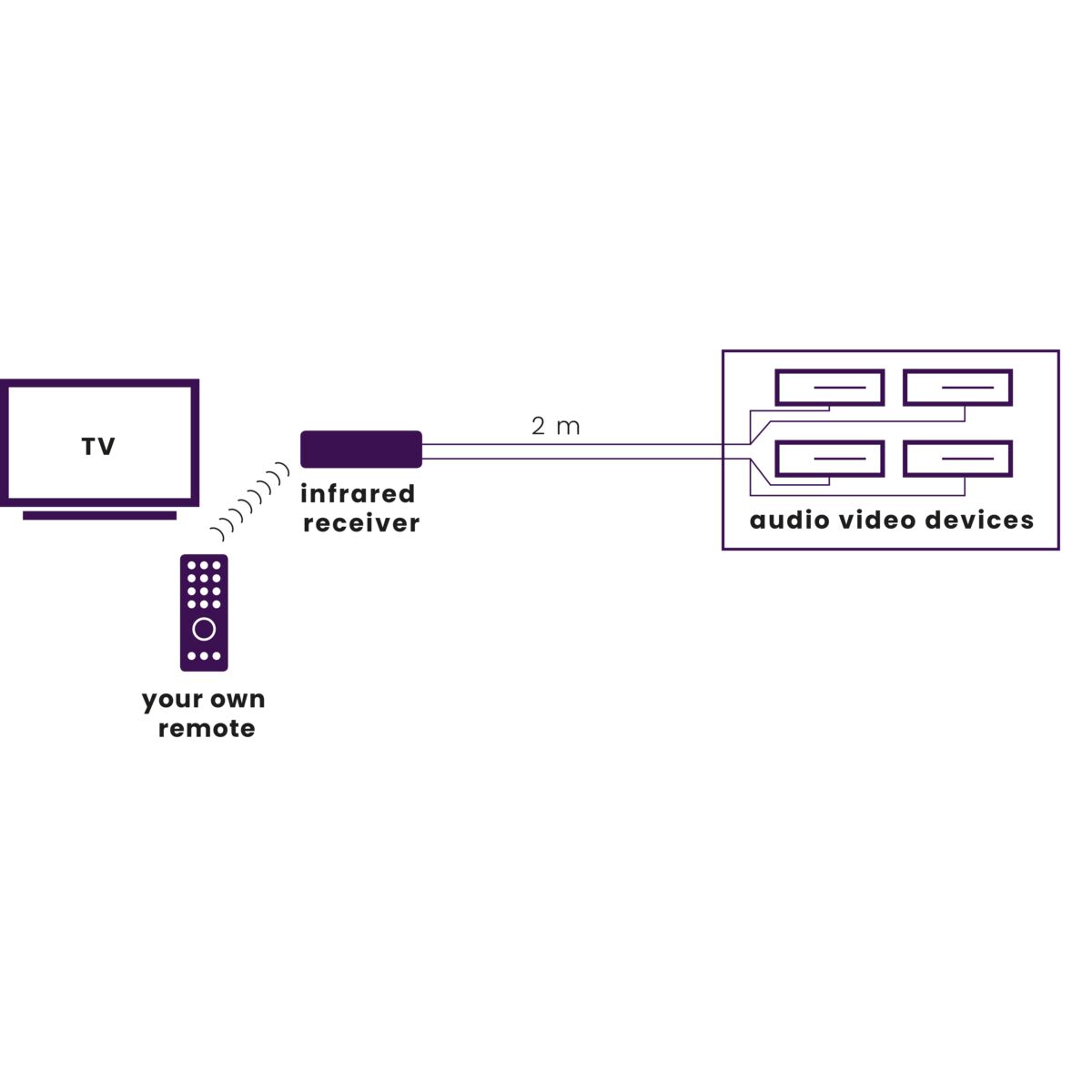

You place the receiver (a little black box) within your remote control's line of sight, having it connected to the transmitter(s) you stuck to your audio visual devices. Your remote control's signal is sent to the transmitter(s) via the receiver. The transmitter then 'operates' your audio visual equipment. This ensures that you do not have to open any cabinet doors in order to operate your equipment.



Technical specifications

Translation missing: en.products.product.tech_specs.ir emitter
IR emitter (adhesive) LEDs 300 cm (from plug to splice 200 cm, from splice to LED 100 cm) with 3.5 mm jack plug
Translation missing: en.products.product.tech_specs.ir module incl ir receiver
Infrared output 2x 3.5 mm jack connection (mono) for emitter LEDs
Frequency range 30 - 60 kHz
Infrared reception range ± 8 metres
Infrared reception angle 60° (+30°/-30°) from centre)

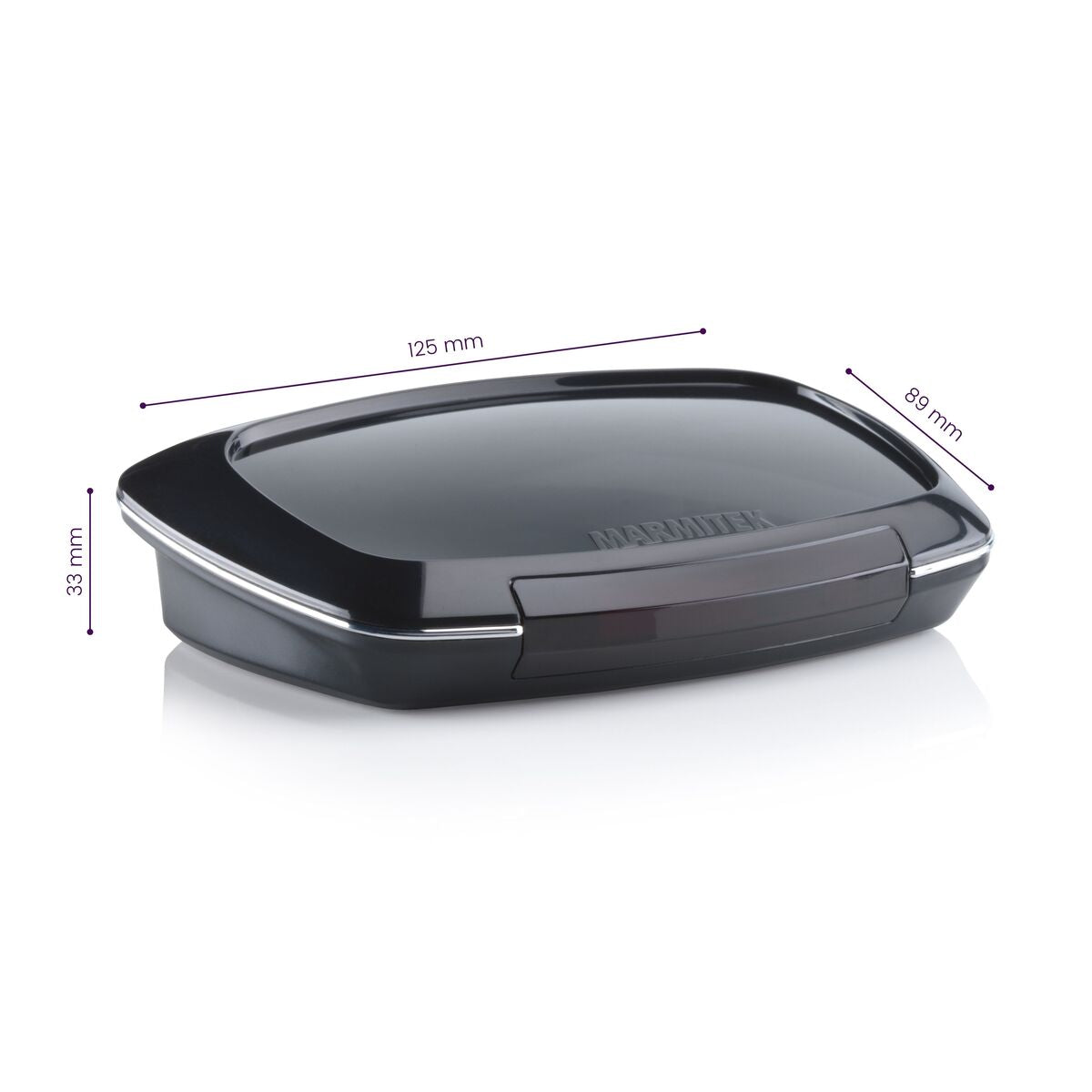

Dimensions (h x w x d) 33 x 125 x 89 mm
Power supply 100-240 VAC 50/60 Hz, 12 VDC adapter (included) or 4x AAA 1.5 V non-rechargeable alkaline batteries (not included) )

Downloads

User manual
Product leaflet
Compare our infrared extenders

Rezensionen

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
X
Xavier POMELEC

Il m'a fallu une dizaine de jours pour le recevoir.
Rien à redire sur l'appareil, il fonctionne très bien et répond à mes attentes.
A voir sur la durée...

Points of sale

Find Our Store
    Opties Reset
    • Lijst
    • Kaart

      Frequently asked questions

      Can I place the IR LED in the centre of the infrared eye?

      The IR LED is made of a material which lets the infrared light through. You can place the LED in the centre of the eye without any problems.

      Can I extend the cable with the IR (infrared) LEDs?

      No, that is not a good idea. The signal becomes too weak. The warranty also expires.

      Can I remove one of the IR (infrared) LEDs if I don’t use it?

      Do not remove any of the IR LEDs. You can, however, attach the unused IR LED to the bottom or back of the device.

      If I use the mains adapter, do I also have to place a battery in the Invisible Control?

      No, when you are using the mains, you do not need a battery. The Invisible Control Black 4 will also not go on stand-by.

      The Invisible Control Black 4 does not respond to the signals sent by my remote controls.

      Go through the following check list:
      • Has the battery been placed correctly? Normally, the Invisible Control Black 4 is in the so-called stand-by mode, to save batteries. By pressing a button on your remote control within a 50 cm range of the receiver, you activate the Invisible Control. A red light on the receiver will flash to confirm the device is activated. If you are using a mains adapter, the Invisible Control will not go into stand-by mode.
      • After the Invisible Control is activated, it has a range of 4-8 m and a opening angle of 30 degrees. This all depends on the remote control used.
      • Invisible Control Black 4 does not work with Bang & Olufsen equipment.
      • In some cases the receiver can suffer from interference (direct sunlight, IR alarm, tube lighting, etc.). In this case you will need to move the receiver slightly, to improve reception.
