IR Control 10

IR Control 10
IR extender - max. 300 m

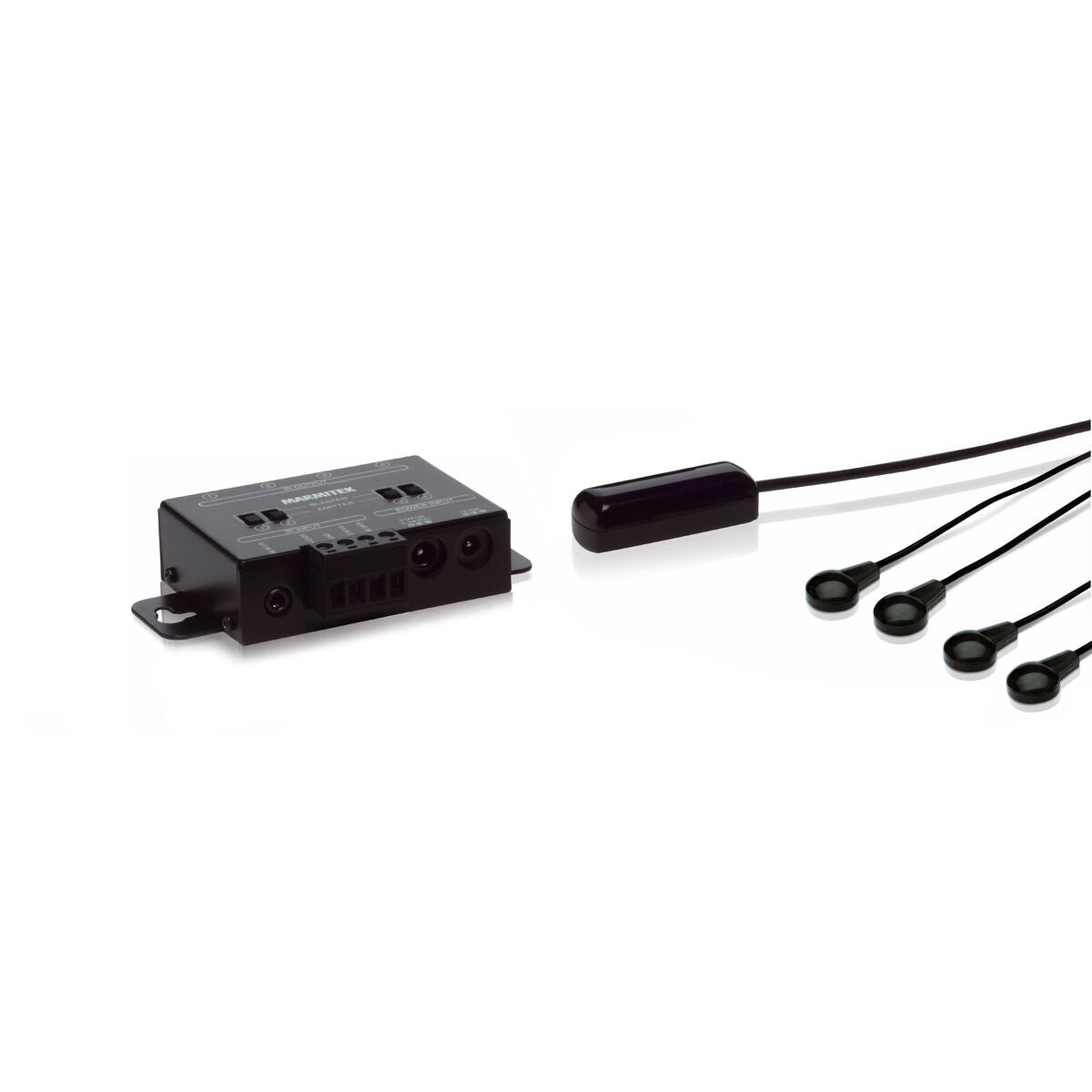

  • IR Control 10 - IR extender - Product Image | Marmitek

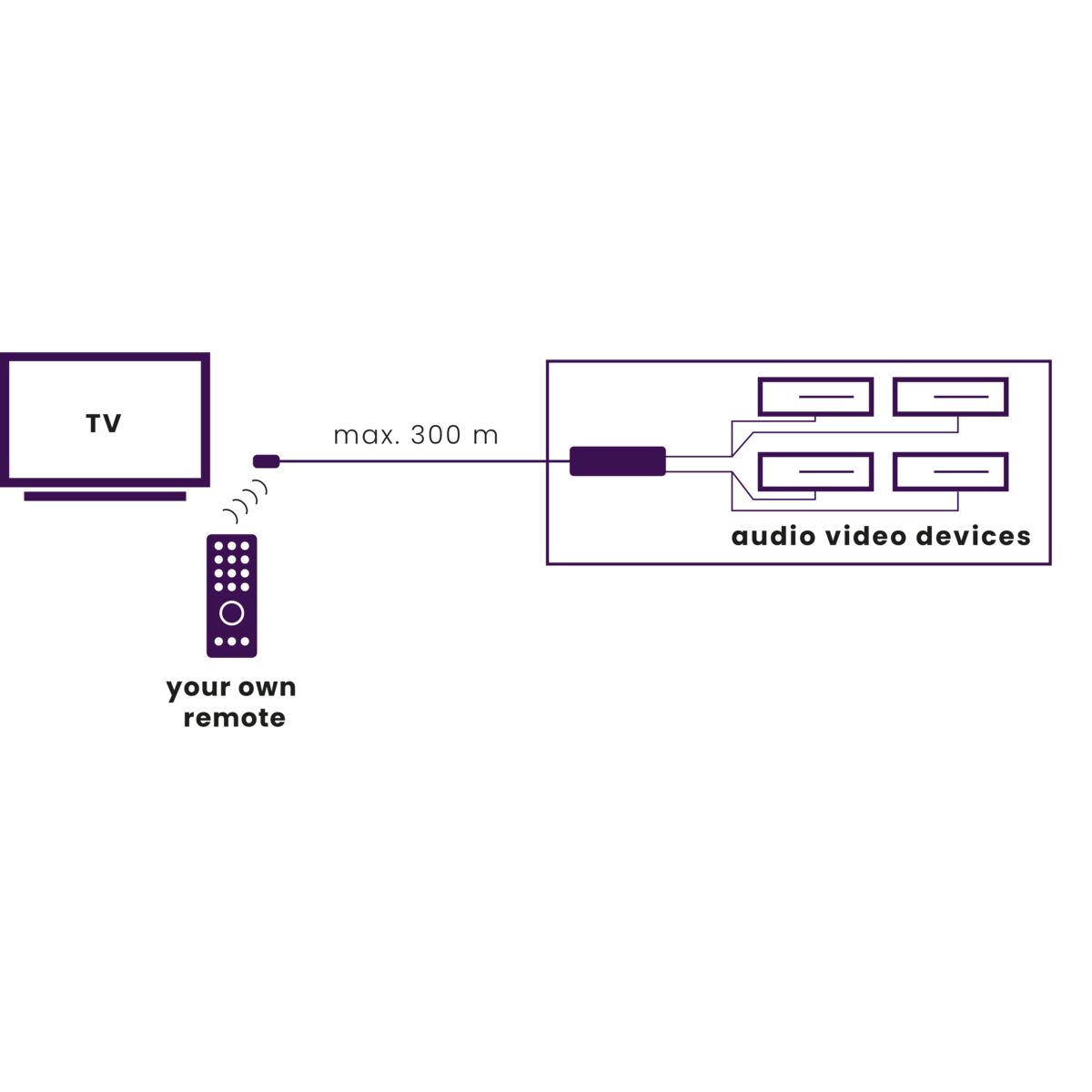

  • IR Control 10 - IR extender - Application Drawing | Marmitek
  • IR Control 10 - IR extender - Product Image of Module | Marmitek

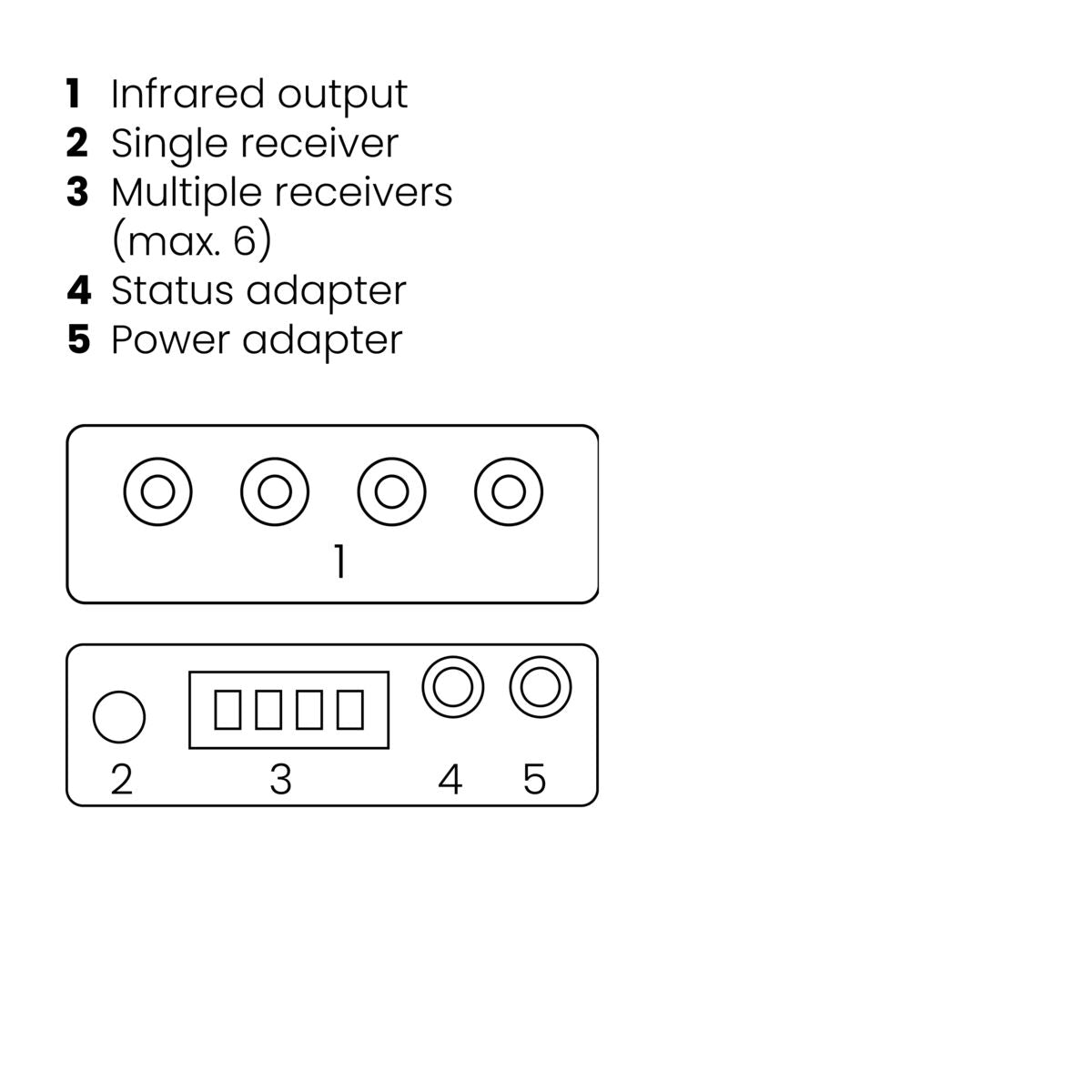

  • IR Control 10 - IR extender - Connections Drawing | Marmitek

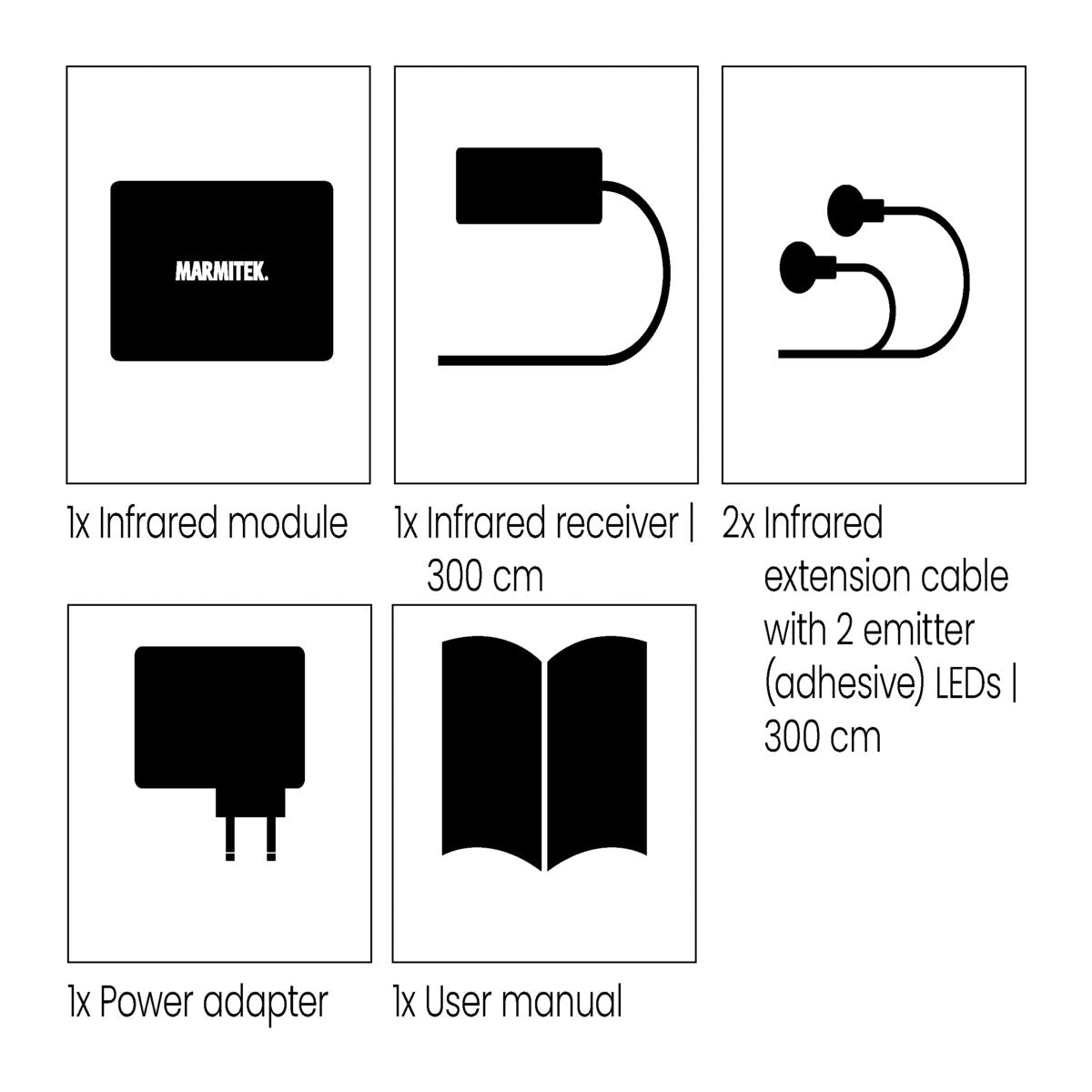

  • IR Control 10 - IR extender - Set Content Image | Marmitek
  • IR Control 10 - IR extender - 3D Packshot Image | Marmitek
  • IR Control 10 - IR extender - Ambiance Image of 2 displays in a hotel lobby | Marmitek
1 7

Always included

  • IR module

  • IR receiver | 300 cm

  • 2x IR extension cable with 2 emitter (self-adhesive) LEDs | 300 cm

  • Power adapter | 180 cm

  • User manual

IR Control 10
IR Control 10
IR extender - max. 300 m

In stock

€ 71,99
€ 71,99
(incl. VAT)
Title
A professional infrared extender to operate up to 4 audiovisual devices from a large distance, using your own remote control. Operate a set-top box from up to 300 metres away. Use your existing remote control and a UTP cable (max. length 300 m). The IR Control 10 can be positioned virtually invisibly and has 4 emitter LEDs. Decide from your office what athletes in the gym get to watch on a TV.

Control 4 AV devices

IR emitter LEDs

Extra small IR receiver

Extendable up to 300 m (using a UTP cable)
View full details
IR Control 10 - IR extender - Product Image | Marmitek
IR Control 10
€ 71,99

Product description

Use your own remote control to operate up to 4 devices from a large distance.

  • Professional set to operate up to 4 (max. 8 if an additional IR emitter expansion set is purchased) AV devices inside TV furniture or a cabinet, even from a large distance, using your current remote control.
  • Due to advanced filtering techniques, impervious to use near flat screen TVs (LCD, LED) and with indirect sunlight.
  • Works with virtually all brands and models and is suitable for new infrared code formats (such as RC-MM), which are used in many new HD devices and digital TV decoders.
  • The IR Control 10 enables you to operate 4 devices immediately.
  • Use the Marmitek IRC EM 2 or IRC BL 1, an infrared extension cable, to connect 4 more devices.
  • With the exception of the tiny infrared receiver, the complete set can be placed out of sight.

The IR Control 10 is our entry-level model for extending infrared signals over a distance of up to 300 metres. The IR Control 10 is almost identical to the IR Control 10 XTRA. Besides emitter LEDs, the latter also has a blaster LED, ensuring it can operate an unlimited number of devices.
You place the receiver within your remote control's line of sight, having it connected to the module you placed inside the cabinet. You then connect the transmitter to the module. Your remote control's signal is transmitted via the receiver to the module, which returns the signal to the transmitter. The transmitter then ‘operates' your audio visual equipment. This ensures that you can control equipment over long distances.



Technical specifications

Translation missing: en.products.product.tech_specs.ir emitter
Infrared emitter (adhesive) LEDs 300 cm with 3.5 mm jack plug (mono)
Translation missing: en.products.product.tech_specs.ir module
Infrared input 1x 3.5 mm jack connection (stereo), 1x screw connector (max 6 receivers)

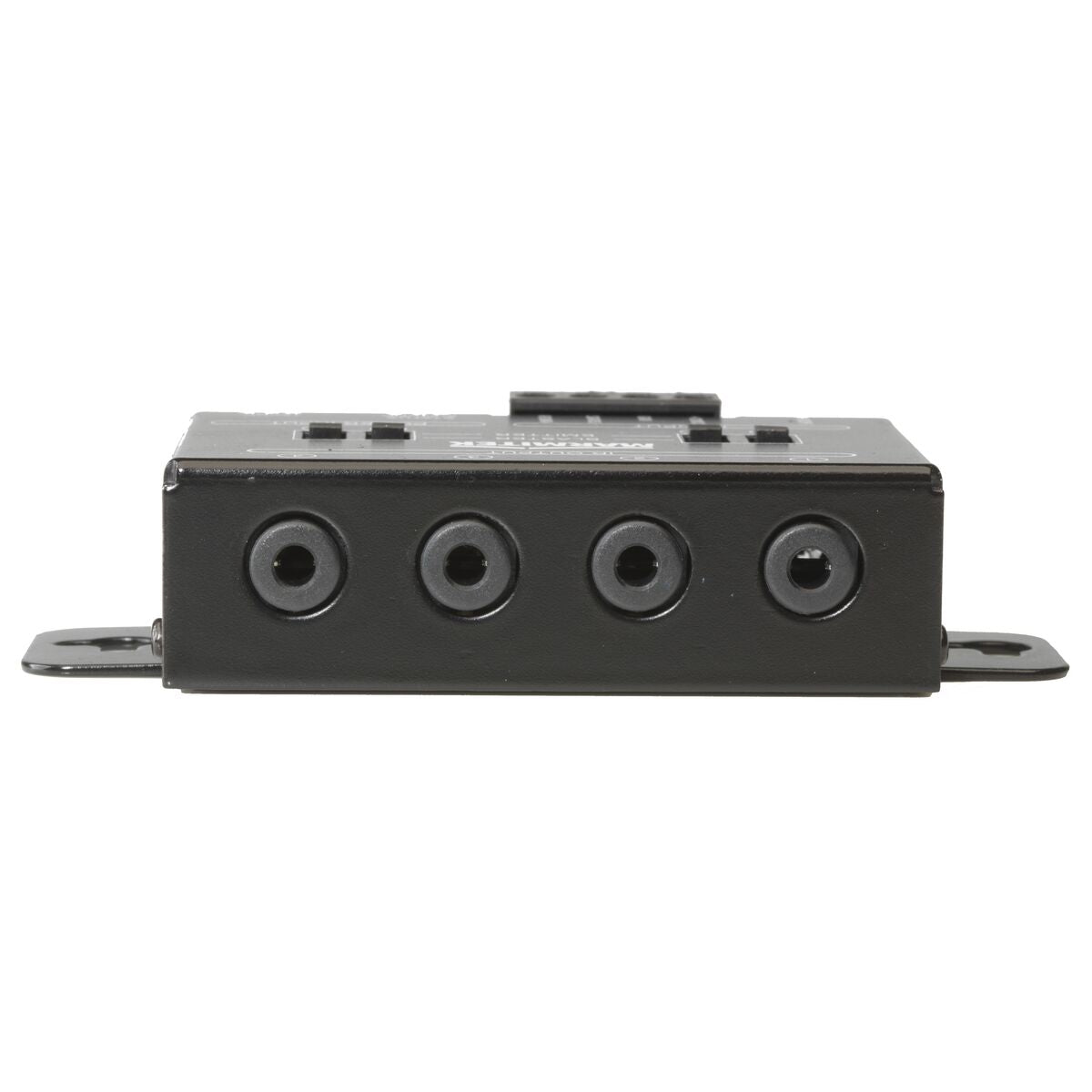

Infrared output 4x 3.5mm jack connection (mono), switchable for emitter/blaster LEDs
Power supply 100-240 VAC 50/60 Hz, 12 VDC adapter
Power supply status connection 5-24 VDC / 5-12 VAC plug, -5.5 mm outside /+2.1 in (not included)
Size 20 x 95 x 46 mm
Translation missing: en.products.product.tech_specs.ir receiver
Frequency range 30 - 60 kHz
Infrared reception range ± 10 meters
Infrared reception angle 90° (+45°/-45° from center)
Cable length 3 meters, extendable up to 300 meters
Infrared reception indication 'YES' → purple indication led
Status indication 'YES'→ green indication led
Dimensions (h x w x d) 11 x 40 x 13 mm

Downloads

User manual
Product leaflet
Compare our infrared extenders

Rezensionen

Points of sale

Find Our Store
    Opties Reset
    • Lijst
    • Kaart

      Frequently asked questions

      Can I place the IR LED in the centre of the infrared eye?

      The IR LED is made of a material which lets the infrared light through. You can place the LED in the centre of the eye without any problems.

      Can I extend the cable with the IR (infrared) blaster LED?

      No, that is not a good idea. The signal becomes too weak. The warranty also expires.

      Can I extend the cable with the IR (infrared) LEDs?

      No, that is not a good idea. The signal becomes too weak. The warranty also expires.

      Can I extend the IR (infrared) receiver cable?

      The standard length of the IR receiver cable is 2 meters; it can be extended up to max. 300 meters, using a UTP or an equivalent cable. Take care about using the right colour coding of the connection, consult the user manual for this.

      Can I remove one of the IR (infrared) LEDs if I don’t use it?

      Do not remove any of the IR LEDs. You can, however, attach the unused IR LED to the bottom or back of the device.
